NME1215DC - Isolated 1W Single Output DC-DC Converters

Download the NME1215DC datasheet PDF. This datasheet also covers the NME0505DC variant, as both devices belong to the same isolated 1w single output dc-dc converters family and are provided as variant models within a single manufacturer datasheet.

Description

The NME series of DC-DC Converters is particularly suited to isolating and/or converting DC power rails.

The galvanic isolation allows the device to be configured to provide an isolated negative rail in systems where only positive rails exist.

Features

  • Short circuit protection options.
  • UL 60950 recognised.
  • Single isolated output.
  • 1kVDC isolation ‘Hi Pot Test’.
  • Wide temperature performance at full 1 watt load,.
  • 40°C to 85°C2.
  • Industry standard pinout.
  • 5V, 12V, 15V & 24V input.
  • 5V, 9V, 12V and 15V output.
  • Fully encapsulated with toroidal magnetics.
  • No external components required.
  • Pin compatible with CME, CRE1, CRL2, LME, MEE1, MEE3, NKE &.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (NME0505DC-muRata.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number NME1215DC
Manufacturer Murata
File Size 204.50 KB
Description Isolated 1W Single Output DC-DC Converters
Datasheet download datasheet NME1215DC Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NME1215 DC/DC Converters NME SERIES 1 WATT ETC
NME1212 DC/DC Converters NME SERIES 1 WATT ETC
NME1205 DC/DC Converters NME SERIES 1 WATT ETC
NME1209 DC/DC Converters NME SERIES 1 WATT ETC
NME0505 DC/DC Converters NME SERIES 1 WATT ETC

Other Datasheets by Murata

Part Number Description
NME1215SC Isolated 1W Single Output DC-DC Converters
NME1212DC Isolated 1W Single Output DC-DC Converters
NME1212SC Isolated 1W Single Output DC-DC Converters
NME1205DC Isolated 1W Single Output DC-DC Converters
NME1205SC Isolated 1W Single Output DC-DC Converters

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

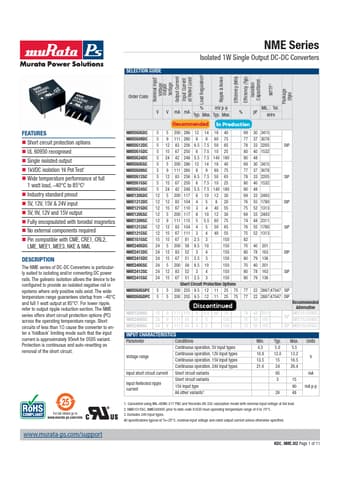

www.murata-ps.com SELECTION GUIDE NME Series Isolated 1W Single Output DC-DC Converters Nominal Input Voltage Output Voltage Output Current Input Current at Rated Load Load Regulation2 Ripple & Noise Efficiency (Min) Efficiency (Typ) Isolation Capacitance MTTF1 Package Style Order Code % mV p-p V V mA mA Typ. Max. Typ. Max. % MIL. Tel.
