MGJ2D121505SC - 5.2kVDC Isolated 2W Gate Drive DC-DC Converters

Product Overview

muRata

📥 Download Datasheet

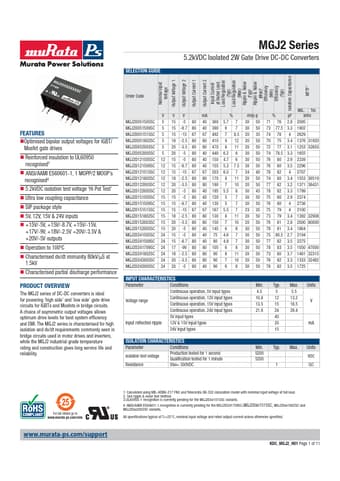

MGJ2D121505SC 5.2kVDC Isolated 2W Gate Drive DC-DC Converters by muRata - Datasheet Preview — Datasheet preview – MGJ2D121505SC

Datasheet Details

Part number	MGJ2D121505SC
Manufacturer	muRata
File Size	252.14 KB
Description	5.2kVDC Isolated 2W Gate Drive DC-DC Converters
Datasheet	MGJ2D121505SC Datasheet
Note	This datasheet PDF includes multiple part numbers: MGJ2D121505SC, MGJ2D051505SC. Please refer to the document for exact specifications by model.
Additional preview pages of the MGJ2D121505SC datasheet.

Product details

Features

Optimised bipolar output voltages for IGBT/ Mosfet gate drives.
Reinforced insulation to UL60950 recognised3.
ANSI/AAMI ES60601-1, 1 MOPP/2 MOOP’s recognised4.
5.2kVDC isolation test voltage ‘Hi Pot Test’.
Ultra low coupling capacitance.
SIP package style.
5V, 12V, 15V & 24V inputs.
+15V/-5V, +15V/-8.7V, +15V/-15V, +17V/-9V, +18V/-2.5V +20V/-3.5V & +20V/-5V outputs.
Operation to 100oC.
Characterised dv/dt i.
