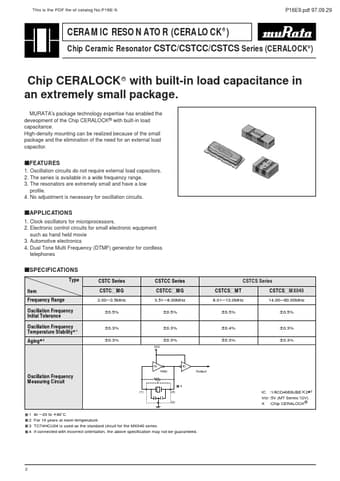

This is the PDF file of catalog No.P16E-9.
P16E9.pdf 97.09.29
CERAMIC RESONATOR (CERALOCK®)
Chip Ceramic Resonator CSTC/CSTCC/CSTCS Series (CERALOCK®)
Chip CERALOCK R with built-in load capacitance in an extremely small package.
MURATA's package technology expertise has enabled the deveopment of the Chip CERALOCK® with built-in load capacitance. High-density mounting can be realized because of the small package and the elimination of the need for an external load capacitor.
cFEATURES
1. Oscillation circuits do not require external load capacitors. 2. The series is available in a wide frequency range. 3. The resonators are extremely small and have a low
profile. 4. No adjustment is necessary for oscillation circuits.
cAPPLICATIONS
1. Clock oscillators for microprocessors. 2.
