52705C - Common Mode Chokes

Features

  • RoHS compliant Toroidal construction Up to 3.5A IDC Inductance range from 3mH to 10mH Small footprint UL 94V-0 packaging materials Low DC resistance Guaranteed 3.0mm creepage and clearance between windings.

📥 Download Datasheet

Datasheet Details

Part number 52705C
Manufacturer Murata
File Size 126.24 KB
Description Common Mode Chokes
Datasheet download datasheet 52705C Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
5270 ACT5270 64-Bit Superscaler Microprocessor Aeroflex Circuit Technology
5270 Silicon NPN triple diffusion mesa type(For horizontal deflection output) Panasonic Semiconductor
5275 COMPLEMENTARY OUTPUT POWER HALL LATCH Allegro MicroSystems
52795 AV SWITCH with I2C BUS CONTROL Mitsubishi

Other Datasheets by Murata

Part Number Description

Full PDF Text Transcription

Click to expand full text

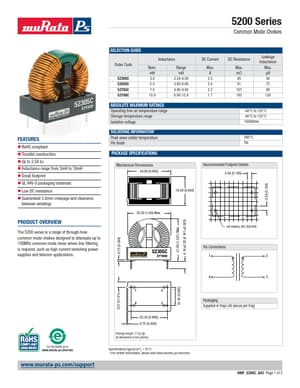

www.murata-ps.com 5200 Series Common Mode Chokes FEATURES RoHS compliant Toroidal construction Up to 3.5A IDC Inductance range from 3mH to 10mH Small footprint UL 94V-0 packaging materials Low DC resistance Guaranteed 3.0mm creepage and clearance between windings PRODUCT OVERVIEW The 5200 series is a range of through-hole common mode chokes designed to attenuate up to 100MHz common mode noise where line filtering is required, such as high current switching power supplies and telecom applications. SELECTION GUIDE Order Code 52305C 52505C 52705C 52106C Inductance Nom. mH 3.0 5.0 7.0 10.0 Range mH 2.24-4.00 3.60-6.60 4.90-9.00 6.90-12.
