ESD9N5B-2, ESD9B5V-2 - Transient Voltage Suppressors

ESD9N5B-2 Datasheet Preview — This datasheet PDF includes multiple part numbers: ESD9N5B-2, ESD9B5V-2. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	ESD9N5B-2, ESD9B5V-2
Manufacturer	msksemi
File Size	413.39 KB
Description	Transient Voltage Suppressors

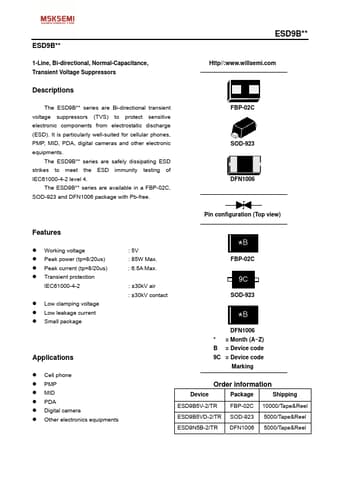

Datasheet	ESD9B5V-2-msksemi.pdf
Note	This datasheet PDF includes multiple part numbers: ESD9N5B-2, ESD9B5V-2. Please refer to the document for exact specifications by model.

ESD9N5B-2 Product details

Description

The ESD9B series are Bi-directional transient voltage suppressors (TVS) to protect sensitive electronic components from electrostatic discharge (ESD). series are safely dissipating ESD strikes to meet the ESD immunity testing of IEC61000-4-2 level 4. series are available in a FBP-02C, SOD-923 and DFN1006 package with Pb-free.

Features

Working voltage.
Peak power (tp=8/20us).
Peak current (tp=8/20us).
Transient protection IEC61000-4-2.
Low clamping voltage.
Low leakage current.
Small package.
