AZ9315-01F Transient Voltage Suppressing Device

AZ9315-01F Description

AZ9315-01F Transient Voltage Suppressing Device For ESD and Surge Protection .

AZ9315-01F Features

* ESD/Surge Protection for 1 Line with Unidirectional. Provide ESD protection for each line to IEC 61000-4-2 (ESD) ±30kV (air / contact) IEC 61000-4-5 (Lightning) 60A (8/20µs) For operating voltage of 5.0V and below 1.6mm x 1.0mm DFN package saves board space High surge protection Fast turn-on and Low

AZ9315-01F Applications

* AZ9315-01F is a unique design which includes proprietary clamping cell in a single package. During transient conditions, the proprietary clamping cell prevents over-voltage on the power line or control/data lines, protecting any downstream components. AZ9315-01F may be used to meet the ESD immunity

📥 Download Datasheet

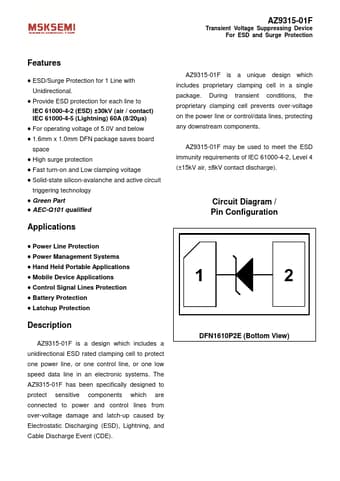

Preview of AZ9315-01F PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AZ9315-01F
Manufacturer
msksemi
File Size
298.59 KB
Datasheet
AZ9315-01F-msksemi.pdf
Description
Transient Voltage Suppressing Device
