MS4N1350E - N-channel MOSFET

Download the MS4N1350E datasheet PDF. This datasheet also covers the MS4N1350 variant, as both devices belong to the same n-channel mosfet family and are provided as variant models within a single manufacturer datasheet.

Description

MasPower has designed an advanced family of very high voltage Power MOSFETs with outstanding performances.

The strengthened layout coupled with the company’s proprietary edge termination structure, gives the lowest RDS(on) per area, unrivalled gate charge and switching characteristics.

Table 1.

Features

  • Type VDSS MS4N1350FW 1500 V MS4N1350 1500 V MS4N1350B 1500 V MS4N1350E 1500 V MS4N1350W 1500 V RDS(on) max.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MS4N1350-maspower.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MS4N1350E
Manufacturer maspower
File Size 1.47 MB
Description N-channel MOSFET
Datasheet download datasheet MS4N1350E Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MS4 SLOW BLOW MICRO FUSE Bel
MS40 Surface Mount Si-Bridge-Rectifiers Diotec Semiconductor
MS40 Bipolar Hall-effect Sensor Ruimeng
MS40S Bipolar Hall-effect Sensor Ruimeng
MS412FE Lithium Rechargeable Battery Seiko

Other Datasheets by maspower

Part Number Description
MS4N1350 N-channel MOSFET
MS4N1350B N-channel MOSFET
MS4N1350FW N-channel MOSFET
MS4N1350W N-channel MOSFET

Full PDF Text Transcription

Click to expand full text

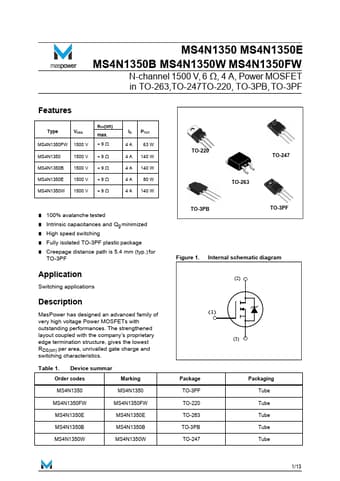

MS4N1350 MS4N1350E MS4N1350B MS4N1350W MS4N1350FW N-channel 1500 V, 6 Ω, 4 A, Power MOSFET in TO-263,TO-247TO-220, TO-3PB, TO-3PF Features Type VDSS MS4N1350FW 1500 V MS4N1350 1500 V MS4N1350B 1500 V MS4N1350E 1500 V MS4N1350W 1500 V RDS(on) max. <9Ω <9Ω <9Ω <9Ω <9Ω ID PTOT 4 A 63 W 4 A 140 W 4 A 140 W 4 A 80 W 4 A 140 W ■ 100% avalanche tested ■ Intrinsic capacitances and Qg minimized ■ High speed switching ■ Fully isolated TO-3PF plastic package ■ Creepage distance path is 5.4 mm (typ.) for TO-3PF Application Switching applications Description MasPower has designed an advanced family of very high voltage Power MOSFETs with outstanding performances.
