FCM32F072CB - 32-bit MCU

Product Overview

Datasheet Details

Part number	FCM32F072CB
Manufacturer	flashchip
File Size	1.95 MB
Description	32-bit MCU
Datasheet	FCM32F072CB Datasheet
Note	This datasheet PDF includes multiple part numbers: FCM32F072CB, FCM32F072C8. Please refer to the document for exact specifications by model.

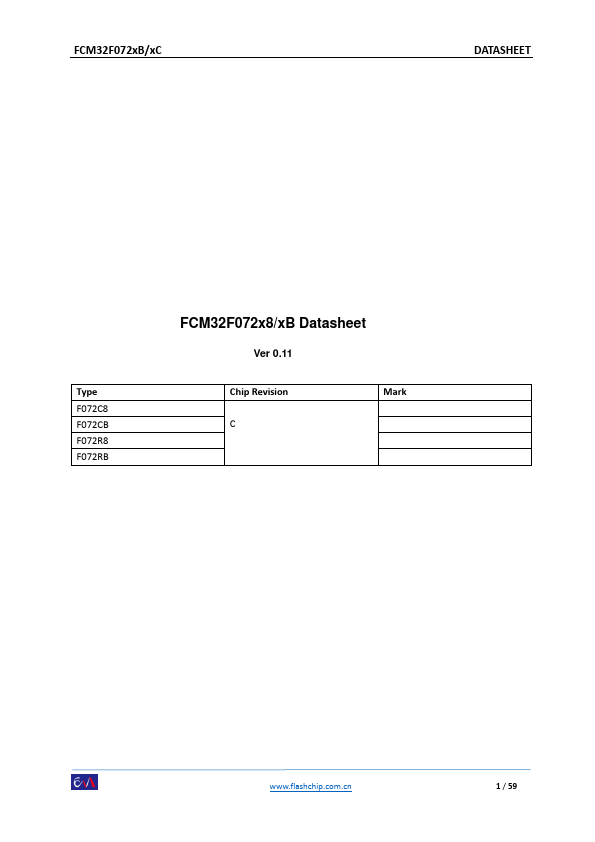

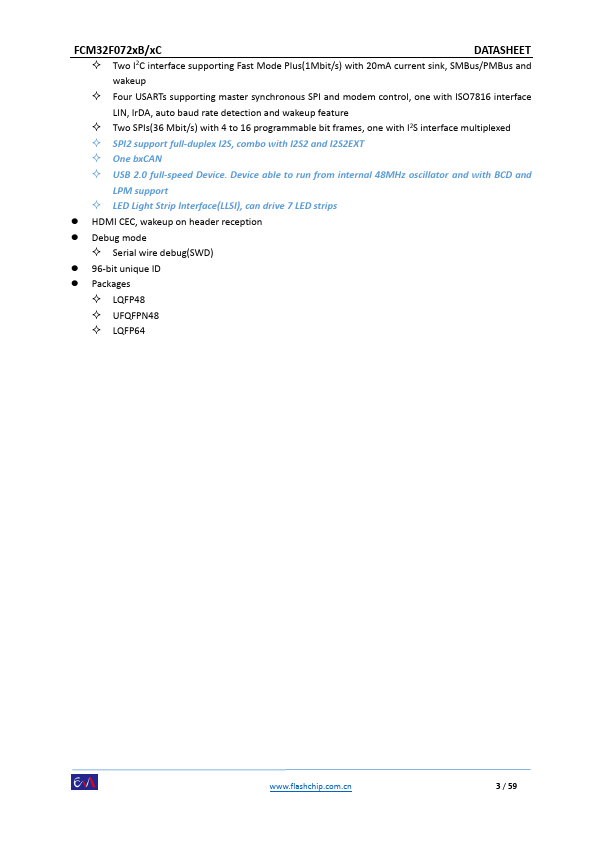

Additional preview pages of the FCM32F072CB datasheet.

Product details

Description

7 3 Functional overview 10 3.1 ARM® Cortex-M0 core10 3.2 Memories 10 3.3 Boot modes 10 3.4 Cyclic redundancy check calculation and Hardware arithmetic unit (CRC & HAU) 11 3.5 Power management 11 3.5.1 Power supply 11 3.5.2 Power supply supervisors11 3.5.3 Voltage regulator 12 3.5.4 Low-power modes12 3.6 Clocks and startup 12 3.7 GPIO 13 3.8 Direct memory access controller (DMA)

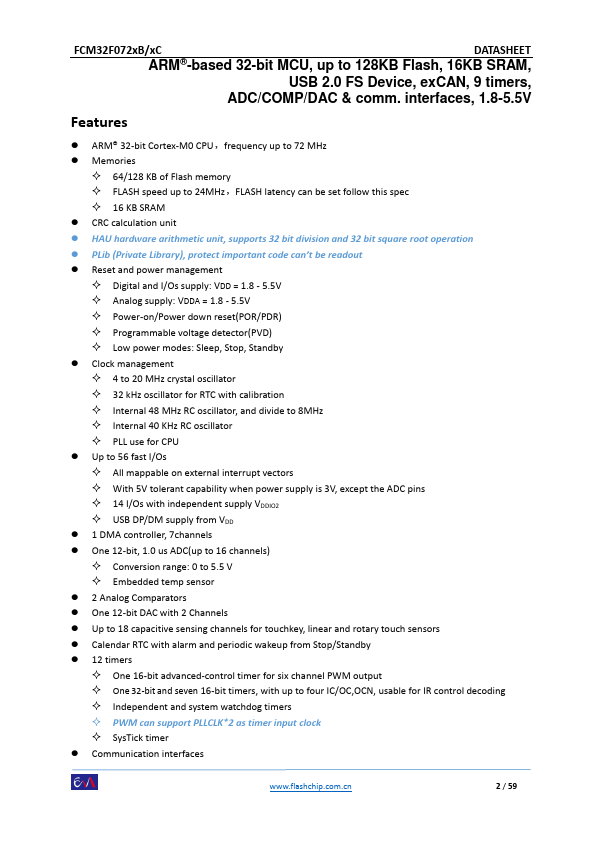

Features

ARM® 32-bit Cortex-M0 CPU，frequency up to 72 MHz.
Memories.
64/128 KB of Flash memory.
FLASH speed up to 24MHz，FLASH latency can be set follow this spec.
16 KB SRAM.
CRC calculation unit.
HAU hardware arithmetic unit, supports 32 bit division and 32 bit square root operation.
PLib (Private Library), protect important code can’t be readout.
Reset and power management.
Digital and I/Os supply: VDD = 1.8 - 5.5V.
Analog supply: VDDA = 1.8 - 5.
