FCM32F030C6 - 32-bit MCU

Product Overview

Datasheet Details

Part number	FCM32F030C6
Manufacturer	flashchip
File Size	1.67 MB
Description	32-bit MCU
Datasheet	FCM32F030C6 Datasheet
Note	This datasheet PDF includes multiple part numbers: FCM32F030C6, FCM32F030F4. Please refer to the document for exact specifications by model.

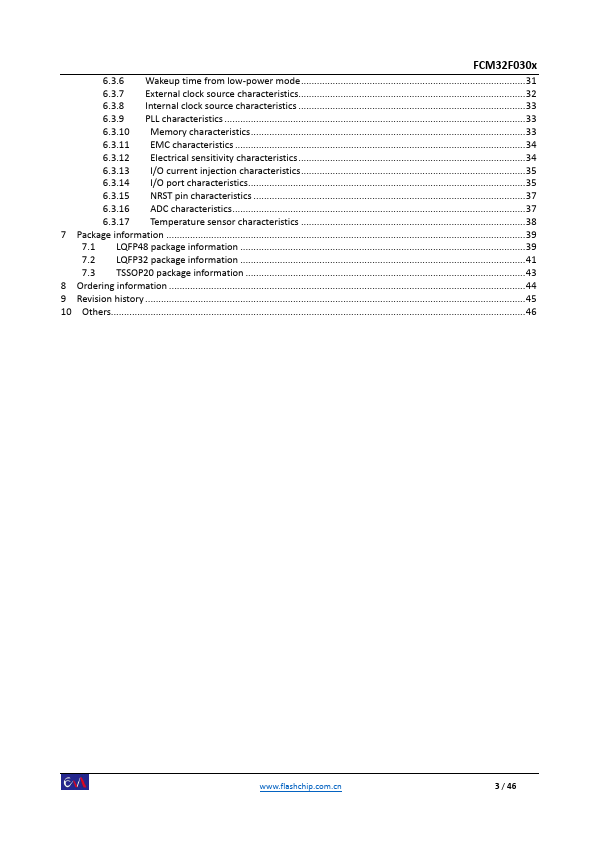

Additional preview pages of the FCM32F030C6 datasheet.

Product details

Description

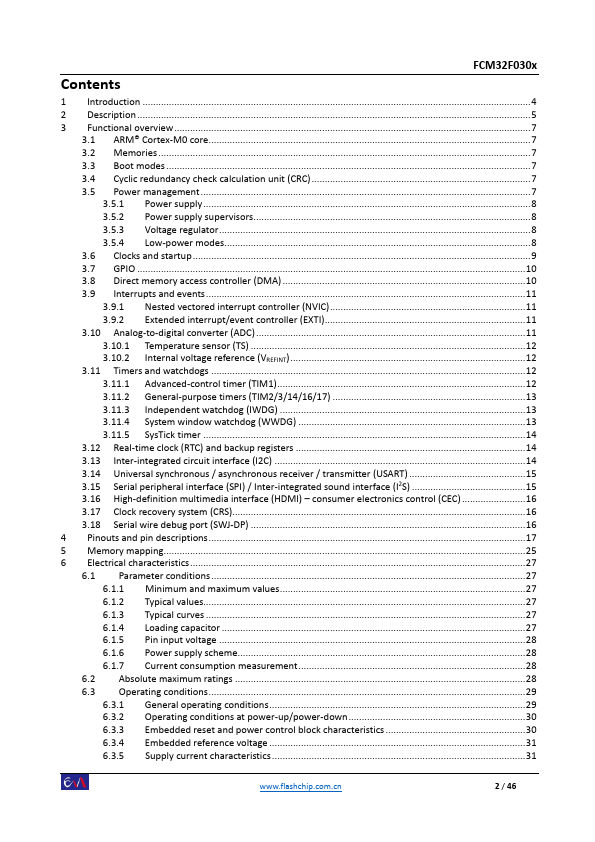

5 3 Functional overview7 3.1 ARM® Cortex-M0 core7 3.2 Memories 7 3.3 Boot modes 7 3.4 Cyclic redundancy check calculation unit (CRC)7 3.5 Power management7 3.5.1 Power supply8 3.5.2 Power supply supervisors8 3.5.3 Voltage regulator8 3.5.4 Low-power modes8 3.6 Clocks and startup9 3.7 GPIO 10 3.8 Direct memory access controller (DMA) 10 3.9 Interrupts and events11 3.9.1 Nested vectored interrupt controller (NVIC)11 3.9.2 Extended interrupt/event controller (EXTI)11 3.10 Analog-to-digital converter

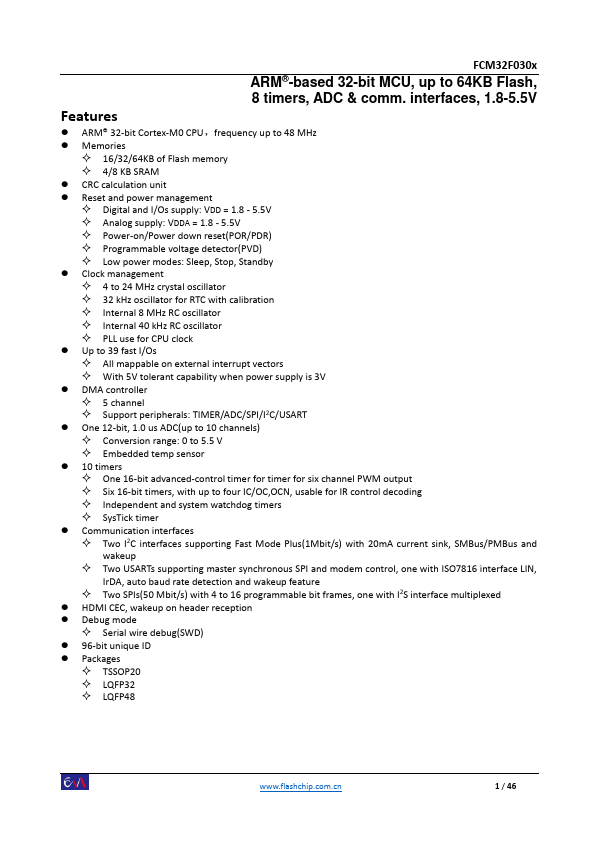

Features

ARM® 32-bit Cortex-M0 CPU，frequency up to 48 MHz.
Memories.
16/32/64KB of Flash memory.
4/8 KB SRAM.
CRC calculation unit.
Reset and power management.
Digital and I/Os supply: VDD = 1.8 - 5.5V.
Analog supply: VDDA = 1.8 - 5.5V.
Power-on/Power down reset(POR/PDR).
Programmable voltage detector(PVD).
Low power modes: Sleep, Stop, Standby.
Clock management.
4 to 24 MHz crystal oscillator.
32 kHz oscillator for RTC with calibrati.
