VSP5610 - CCD/CMOS Sensor Analog Front-End

Texas Instruments

📥 Download Datasheet

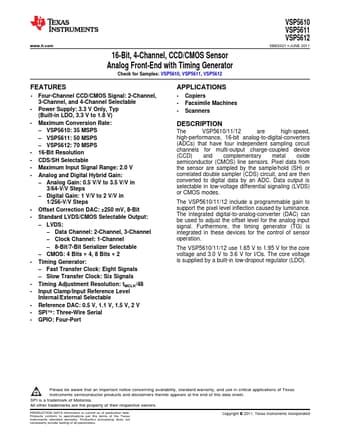

VSP5610 Datasheet Preview — Preview of VSP5610 PDF

Datasheet Details

Part number	VSP5610
Manufacturer	Texas Instruments
File Size	761.97 KB
Description	CCD/CMOS Sensor Analog Front-End
Datasheet	VSP5610-etcTI.pdf

VSP5610 Product details

Description

The VSP5610/11/12 are high-speed, high-performance, 16-bit analog-to-digital-converters (ADCs) that have four independent sampling circuit channels for multi-output charge-coupled device (CCD) and complementary metal oxide semiconductor (CMOS) line sensors.Pixel data from the sensor are sampled by the sample/hold (SH) or correlated double sampler (CDS) circuit, and are then converted to digital data by an ADC.Data output is selectable in low-voltage differential signaling (LVDS)

Features

1.
23 Four-Channel CCD/CMOS Signal: 2-Channel, 3-Channel, and 4-Channel Selectable.
Power Supply: 3.3 V Only, Typ (Built-in LDO, 3.3 V to 1.8 V).
Maximum Conversion Rate:.
VSP5610: 35 MSPS.
VSP5611: 50 MSPS.
VSP5612: 70 MSPS.
16-Bit Resolution.
CDS/SH Selectable.
Maximum Input Signal Range: 2.0 V.
Analog and Digital Hybrid Gain:.
Analog Gain: 0.5 V/V to 3.5 V/V in 3/64-V/V Steps.
Digital Ga.
