ULN2004AI - HIGH-VOLTAGE HIGH-CURRENT DARLINGTON TRANSISTOR ARRAY

📥 Download Datasheet

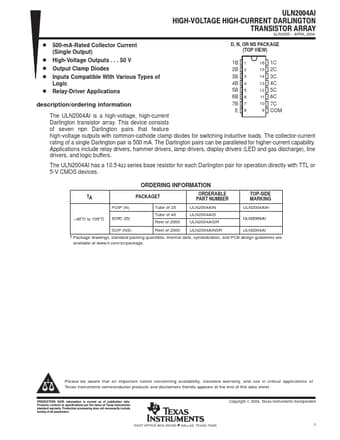

Preview of ULN2004AI PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number ULN2004AI
Manufacturer Texas Instruments
File Size 695.53 KB
Description HIGH-VOLTAGE HIGH-CURRENT DARLINGTON TRANSISTOR ARRAY
Datasheet download datasheet ULN2004AI-etcTI.pdf

ULN2004AI Product details

Description

ordering information 7B 7 10 7C The ULN2004AI is a high-voltage, high-current E8 9 COM Darlington transistor array.This device consists of seven npn Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads.The collector-current rating of a single Darlington pair is 500 mA.The Darlington pairs can be paralleled for higher-current capability.Applications include relay drivers, hammer drivers, lamp drivers, display drivers (LED
