UCC2946-Q1 Microprocessor Supervisor

UCC2946-Q1 Description

UCC2946-Q1 www.ti.com SGLS273B * OCTOBER 2004 * REVISED MARCH 2009 MICROPROCESSOR SUPERVISOR WITH WATCHDOG TIMER .
The UCC2946 is designed to provide accurate microprocessor supervision, including reset and watchdog functions.

UCC2946-Q1 Features

* 1

UCC2946-Q1 Applications

* Fully Programmable Reset Threshold
* Fully Programmable Reset Period
* Fully Programmable Watchdog Period
* 2% Accurate Reset Threshold
* Input Voltage Down to 2 V
* Input 18-µA Maximum Input Current

📥 Download Datasheet

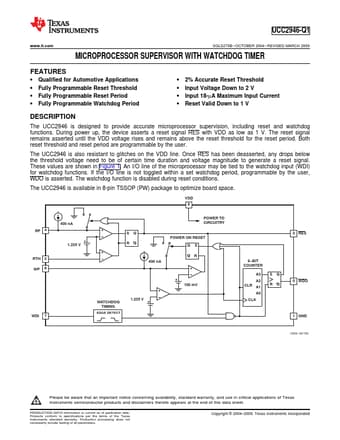

Preview of UCC2946-Q1 PDF
datasheet Preview Page 2 datasheet Preview Page 3
