UCC28911, UCC28910 - High-Voltage Flyback Switcher

UCC28911 Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community UCC28910 UCC28911 SLUS769D * JULY 2013 * REV.
The UCC28910 and UCC28911 are high-voltage flyback switchers that provide output voltage and current regulation without the use of an optical coupler.

UCC28911 Features

* 1 Constant-Voltage (CV) and Constant-Current (CC) Output Regulation Without Optical-Coupler
* ±5% Output Voltage Regulation Accuracy
* ±5% Output Current Regulation With AC Line and Primary Inductance Tolerance Compensation
* 700-V Start-Up and Smart Power Management

UCC28911 Applications

* Home and Building Automation
* Power Metering Bias
* Bias Power for Smoke Alarm, Fire Alarm and Thermostat
* Wall Adapters, Chargers for Mobile Phones
* Smart plug, IoT, MCU and WiFi Power
* Aux power for TV, Server, White Goods
* LED Lightin

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: UCC28911, UCC28910. Please refer to the document for exact specifications by model.

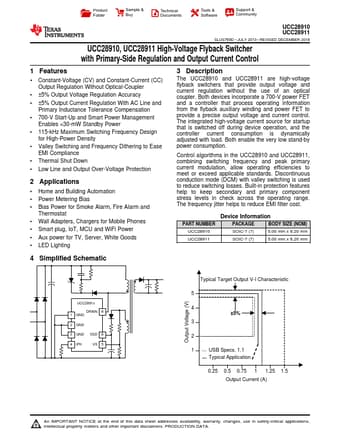

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UCC28911, UCC28910
Manufacturer
Texas Instruments ↗
File Size
1.58 MB
Datasheet
UCC28910-etcTI.pdf
Description
High-Voltage Flyback Switcher
Note
This datasheet PDF includes multiple part numbers: UCC28911, UCC28910.
Please refer to the document for exact specifications by model.
