UCC27512, UCC27511 Low-Side Gate Driver

UCC27512 Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community UCC27511, UCC27512 SLUSAW9F * FEBRUARY 2012 .
The UCC27511 and UCC27512 single-channel, highspeed, low-side gate-driver device can effectively drive MOSFET and IGBT power switches.

UCC27512 Features

* Low-Cost Gate-Driver Device Offering Superior Replacement of NPN and PNP Discrete Solutions
* 4-A Peak Source and 8-A Peak Sink Asymmetrical Drive
* Strong Sink Current Offers Enhanced Immunity Against Miller Turnon
* Split Output Configuration (Allows Easy and Inde

UCC27512 Applications

* Switched-Mode Power Supplies
* DC-to-DC Converters
* Companion Gate-Driver Devices for Digital Power Controllers
* Solar Power, Motor Control, UPS

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: UCC27512, UCC27511. Please refer to the document for exact specifications by model.

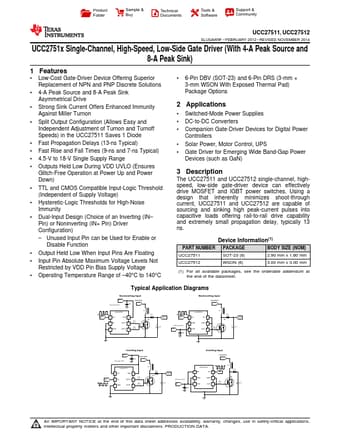

datasheet Preview Page 2 datasheet Preview Page 3
