UCC25800B-Q1, UCC25800-Q1 - Ultra-low EMI Transformer Driver

Name: UCC25800B-Q1
SKU: UCC25800B-Q1-1522075

Texas Instruments

📥 Download Datasheet

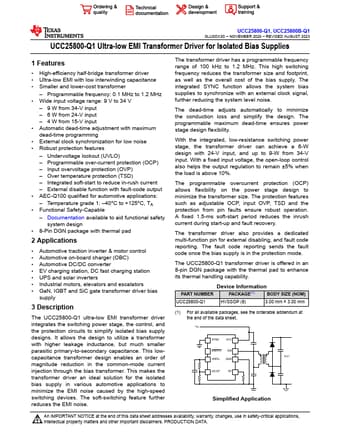

UCC25800B-Q1 Datasheet Preview — This datasheet PDF includes multiple part numbers: UCC25800B-Q1, UCC25800-Q1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	UCC25800B-Q1, UCC25800-Q1
Manufacturer	Texas Instruments
File Size	2.48 MB
Description	Ultra-low EMI Transformer Driver
Datasheet	UCC25800-Q1-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: UCC25800B-Q1, UCC25800-Q1. Please refer to the document for exact specifications by model.

UCC25800B-Q1 Product details

Description

The UCC25800-Q1 ultra-low EMI transformer driver integrates the switching power stage, the control, and the protection circuits to simplify isolated bias supply designs.

Features

High-efficiency half-bridge transformer driver.
Ultra-low EMI with low interwinding capacitance.
Smaller and lower-cost transformer.
Programmable frequency: 0.1 MHz to 1.2 MHz.
Wide input voltage range: 9 V to 34 V.
9 W from 34-V input.
6 W from 24-V input.
4 W from 15-V input.
Automatic dead-time adjustment with maximum dead-time programming.
External clock synchronization for low noise.
Robust p.
