UC1706 - Dual Output Driver

The UC1706 by Texas Instruments is a Dual Output Driver. Below is the official datasheet preview.

📥 Download Datasheet

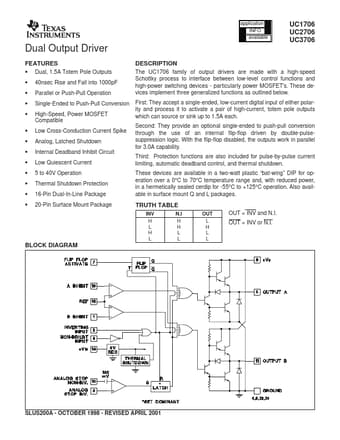

Official preview page of the UC1706 Dual Output Driver datasheet (Texas Instruments).

Datasheet Details

Part number UC1706
Manufacturer Texas Instruments
File Size 741.56 KB
Description Dual Output Driver
Datasheet download datasheet UC1706-etcTI.pdf
Additional preview pages of the UC1706 datasheet.

UC1706 Product details

Description

The UC1706 family of output drivers are made with a high-speed Schottky process to interface between low-level control functions and high-power switching devices - particularly power MOSFET's. Single-Ended to Push-Pull Conversion First: They accept a single-ended, low-current digital input of either polar- High-Speed, Power MOSFET Compatible ity and process it to activate a pair of high-current, totem p
