UC1610 - DUAL SCHOTTKY DIODE BRIDGE

Description

This eight-diode array is designed for high-current, low duty-cycle applications typical of flyback voltage clamping for inductive loads.

The dual bridge connection makes this device particularly applicable to bipolar driven stepper motors.

Features

  • D Monolithic Eight-Diode Array D Exceptional Efficiency D Low Forward Voltage D Fast Recovery Time D High Peak Current D Small Size.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
UC1610 Dual Schottky Diode Bridge Unitrode
UC1611s Matrix LCD Controller ULTRACHIP
UC1617 Ultra-Low Power 128COM x 128SEG Matrix Passive LCD Controller-Driver Ultra Chip
UC1617S 128 X 128 STN Controller Driver Ultra Chip
UC1602 65COM x 102SEG Passive Matrix LCD Controller-Driver Ultra Chip

Other Datasheets by Texas Instruments

Part Number Description
UC1611 Quad Schottky Diode Array
UC1625 Brushless DC Motor Controller
UC1625-SP BRUSHLESS DC MOTOR CONTROLLER
UC1637-SP SWITCHED MODE CONTROLLER
UC1524 ADVANCED REGULATING PULSE WIDTH MODULATORS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

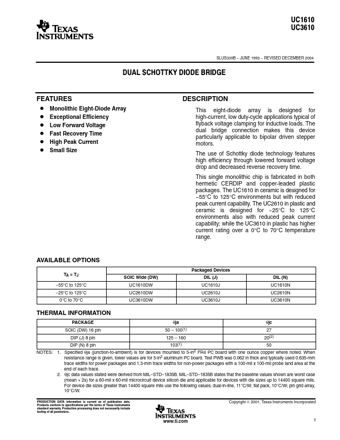

UC1610 UC3610 SLUS339B − JUNE 1993 − REVISED DECEMBER 2004 DUAL SCHOTTKY DIODE BRIDGE FEATURES D Monolithic Eight-Diode Array D Exceptional Efficiency D Low Forward Voltage D Fast Recovery Time D High Peak Current D Small Size DESCRIPTION This eight-diode array is designed for high-current, low duty-cycle applications typical of flyback voltage clamping for inductive loads. The dual bridge connection makes this device particularly applicable to bipolar driven stepper motors. The use of Schottky diode technology features high efficiency through lowered forward voltage drop and decreased reverse recovery time. This single monolithic chip is fabricated in both hermetic CERDIP and copper-leaded plastic packages.
