TSD15C, TSD05C 5-V Bidirectional TVS Diode

TSD15C Description

TSD05C, TSD12C, TSD15C, TSD18C, TSD24C, TSD36C SLVSH42C * JUNE 2023 * REVISED OCTOBER 2024 TSDxxC Bidirectional TVS Diodes in SOD-323 .
The TSDxxC are a family of bidirectional TVS protection diodes designed for clamping harmful transients such as ESD and surge.

TSD15C Features

* IEC 61000-4-2 ESD protection:
* ±30kV contact discharge
* ±30kV air gap discharge
* IEC 61000-4-5 surge protection:
* 6.5-30A (8/20µs)
* Low IO capacitance < 7pF (typical)
* Ultra low leakage current: 10nA (maximum)
* Industrial tempe

TSD15C Applications

* I/O Protection
* Power Line Protection
* USB VBUS
* Appliances
* Medical & Healthcare

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TSD15C, TSD05C. Please refer to the document for exact specifications by model.

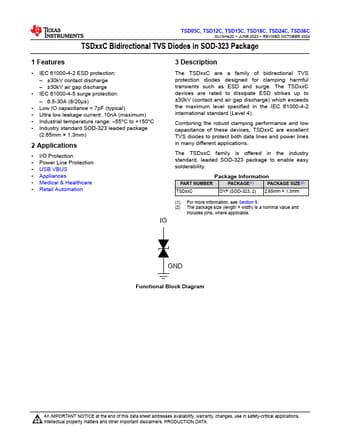

datasheet Preview Page 2 datasheet Preview Page 3
