TPS793 - 200-mA Low-Dropout Linear Regulator

Texas Instruments

The TPS793 by Texas Instruments is a 200-mA Low-Dropout Linear Regulator. Below is the official datasheet preview.

📥 Download Datasheet

TPS793 200-mA Low-Dropout Linear Regulator by Texas Instruments - Datasheet Preview — Official preview page of the TPS793 200-mA Low-Dropout Linear Regulator datasheet (Texas Instruments).

Datasheet Details

Part number	TPS793
Manufacturer	Texas Instruments
File Size	3.06 MB
Description	200-mA Low-Dropout Linear Regulator
Datasheet	TPS793-etcTI.pdf

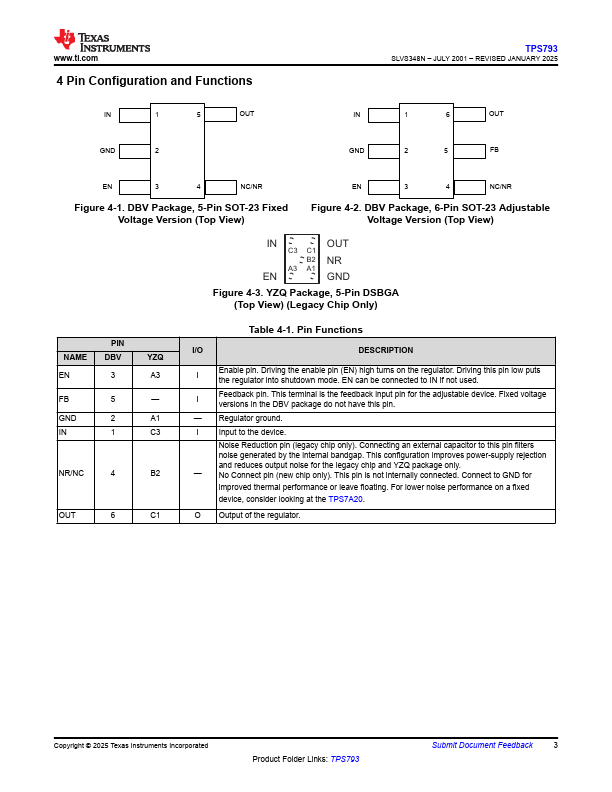

Additional preview pages of the TPS793 datasheet.

TPS793 Product details

Description

The TPS793 is a low-dropout (LDO) voltage regulators that

Features

Low-dropout regulator with enable.
Available in fixed-voltage versions:.
1.8V to 4.75V (legacy chip).
1.8V to 3.3V (new chip).
Adjustable output voltage range: 1.22V to 5.5V.
Low noise:.
55μVRMS (legacy chip).
69μVRMS (new chip).
Fast start-up time:.
50μs (legacy chip).
500μs (new chip).
Very-low dropout voltage: 112mV (typ).
For a more updated portfolio device, see the TPS7A20 2.
