TPS62872, TPS62870 Synchronous Step-Down Converters

TPS62872 Description

TPS62870, TPS62871, TPS62872, TPS62873 SLVSGC5C * JANUARY 2023 * REVISED JANUARY 2025 TPS6287x 2.7V to 6V Input, 6A, 9A, 12A, 15A, Sta.
The TPS6287x is a family of pin-to-pin 6A, 9A, 12A, and 15A synchronous step-down DC/DC converters with differential remote sensing.

TPS62872 Features

* Functional Safety-Capable
* Documentation available to aid functional safety system design
* 2.7V to 6V input voltage range
* 6A, 9A, 12A, and 15A family of pin-to-pin compatible device
* Four output voltage ranges:
* 0.4V to 0.71875V in 1.25mV steps

TPS62872 Applications

* Optical networks
* Storage
* FPGA, ASIC, and digital core supply

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TPS62872, TPS62870. Please refer to the document for exact specifications by model.

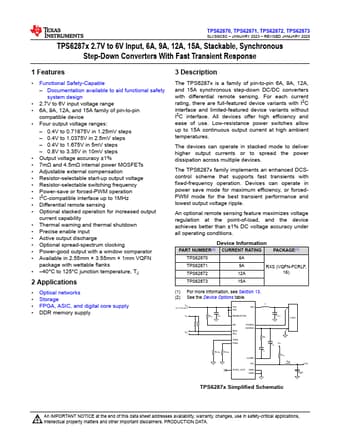

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPS62872, TPS62870
Manufacturer
Texas Instruments ↗
File Size
1.99 MB
Datasheet
TPS62870-etcTI.pdf
Description
Synchronous Step-Down Converters
Note
This datasheet PDF includes multiple part numbers: TPS62872, TPS62870.
Please refer to the document for exact specifications by model.
