TPS61222, TPS61220 - 0.7V Boost Converter

TPS61222 Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community Reference Design TPS61220, TPS61221, TPS61222 SLVS776B .
The TPS6122x family devices provide a power-supply solution for products powered by either a single-cell, two-cell, or three-cell alkaline, NiCd or Ni.

TPS61222 Features

* 1 Up to 95% Efficiency at Typical Operating Conditions
* 5.5 μA Quiescent Current
* Startup Into Load at 0.7 V Input Voltage
* Operating Input Voltage from 0.7 V to 5.5 V
* Pass-Through Function during Shutdown
* Minimum Switching Current 200 mA

TPS61222 Applications

* Battery Powered Applications
* 1 to 3 Cell Alkaline, NiCd or NiMH
* 1 cell Li-Ion or Li-Primary
* Solar or Fuel Cell Powered Applications
* Consumer and Portable Medical Products
* Personal Care Products
* White or Status LEDs
* Smart

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TPS61222, TPS61220. Please refer to the document for exact specifications by model.

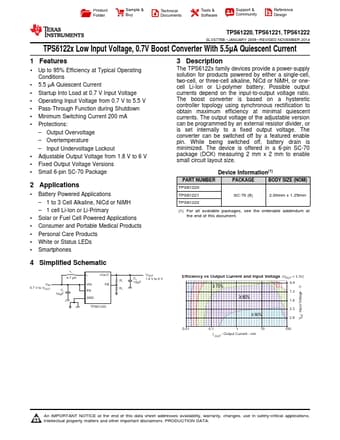

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPS61222, TPS61220
Manufacturer
Texas Instruments ↗
File Size
1.56 MB
Datasheet
TPS61220-etcTI.pdf
Description
0.7V Boost Converter
Note
This datasheet PDF includes multiple part numbers: TPS61222, TPS61220.
Please refer to the document for exact specifications by model.
