TPS3802 - ULTRA-SMALL SUPPLY VOLTAGE SUPERVISORS

Download the TPS3802 datasheet PDF (TPS3800 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for ultra-small supply voltage supervisors.

Description

The TPS380x family of supervisory circuits monitor supply voltages to provide circuit initialization and timing supervision, primarily for DSPs and other processor-based systems.

Features

  • 1.
  • 2 Small, 5-Pin SC-70 (SOT-323) Package.
  • Supply Current of 9 mA.
  • Power-On Reset Generator With Fixed Delay Time.
  • TPS3800 = 100 ms.
  • TPS3801 = 200 ms.
  • TPS3802 = 400 ms.
  • Precision Supply Voltage Monitor 1.8 V, 2.5 V, 2.7 V, 3 V, 3.3 V, 5 V, and Adjustable.
  • Manual Reset Input (Except TPS3801-01).
  • Temperature Range:.
  • 40°C to +85°C.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TPS3800-etcTI.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • TPS3-100 - Digital Power Controllers Operating Manual (STS)
  • TPS3-160 - Digital Power Controllers Operating Manual (STS)
  • TPS3-60 - Digital Power Controllers Operating Manual (STS)
  • TPS3.125 - Digital Power Controllers Operating Manual (STS)
  • TPS3.200 - Digital Power Controllers Operating Manual (STS)
  • TPS3.40 - Digital Power Controllers Operating Manual (STS)
  • TPS3.80 - Digital Power Controllers Operating Manual (STS)
  • TPS3214 - Thermopile Sensor (PerkinElmer Optoelectronics)
  • TPS3316DC - Low Profile Low DCR Power Inductors (Token)
  • TPS333 - Thermopile Detector (PerkinElmer Optoelectronics)
Other Datasheets by Texas Instruments

Full PDF Text Transcription

Click to expand full text

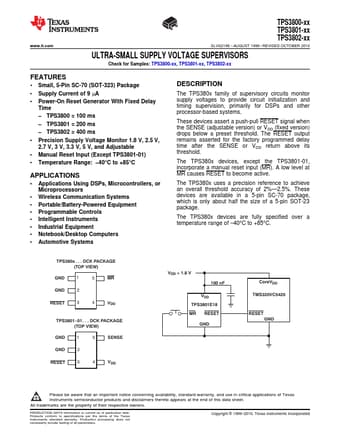

www.ti.com TPS3800-xx TPS3801-xx TPS3802-xx SLVS219E – AUGUST 1999 – REVISED OCTOBER 2010 ULTRA-SMALL SUPPLY VOLTAGE SUPERVISORS Check for Samples: TPS3800-xx, TPS3801-xx, TPS3802-xx FEATURES 1 •2 Small, 5-Pin SC-70 (SOT-323) Package • Supply Current of 9 mA • Power-On Reset Generator With Fixed Delay Time – TPS3800 = 100 ms – TPS3801 = 200 ms – TPS3802 = 400 ms • Precision Supply Voltage Monitor 1.8 V, 2.5 V, 2.7 V, 3 V, 3.
