TPS2411, TPS2410 - Full Feaured N+1 and ORing Power Rail Controller

Texas Instruments

📥 Download Datasheet

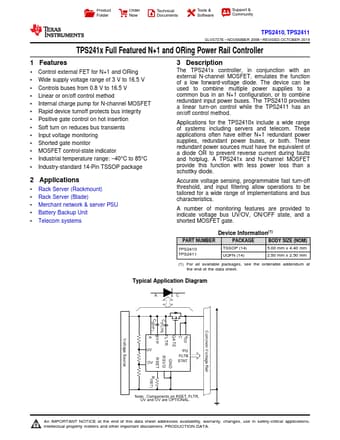

TPS2411 Datasheet Preview — This datasheet PDF includes multiple part numbers: TPS2411, TPS2410. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TPS2411, TPS2410
Manufacturer	Texas Instruments
File Size	1.30 MB
Description	Full Feaured N+1 and ORing Power Rail Controller
Datasheet	TPS2410-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: TPS2411, TPS2410. Please refer to the document for exact specifications by model.

TPS2411 Product details

Description

The TPS241x controller, in conjunction with an external N-channel MOSFET, emulates the function of a low forward-voltage diode.

Features

1 Control external FET for N+1 and ORing.
Wide supply voltage range of 3 V to 16.5 V.
Controls buses from 0.8 V to 16.5 V.
Linear or on/off control method.
Internal charge pump for N-channel MOSFET.
Rapid device turnoff protects bus integrity.
Positive gate control on hot insertion.
Soft turn on reduces bus transients.
Input voltage monitoring.
Shorted gate monitor.
MOSFET control-state indicator.
