TPS2300 - DUAL HOT-SWAP POWER CONTROLLERS

Description

The TPS2300 and TPS2301 are dual-channel hotswap controllers that use external N-channel MOSFETs as high-side switches in power applications.

Features

  • 1.
  • Dual-Channel High-Side MOSFET Drivers.
  • IN1: 3 V to 13 V; IN2: 3 V to 5.5 V.
  • Output dV/dt Control Limits Inrush Current.
  • Circuit-Breaker With Programmable Overcurrent Threshold and Transient Timer.
  • Power-Good Reporting With Transient Filter.
  • CMOS- and TTL-Compatible Enable Input.
  • Low, 5-μA Standby Supply Current (Max).
  • Available in 20-Pin TSSOP Package.
  • 40°C to 85°C Ambient Temperature Range.
  • Electrostati.

📥 Download Datasheet

📁 Similar Datasheet

  • TPS232 - Thermopile Sensor (PerkinElmer Optoelectronics)
  • TPS2398 - -48V Hot Swap Controller (ON Semiconductor)
  • TPS2399 - -48V Hot Swap Controller (ON Semiconductor)
  • TPS23B - Thermopile Sensor (PerkinElmer Optoelectronics)
  • TPS20 - high reliable pressure transmitter (Konics)
  • TPS2405 - 2W 6KVDC Isolated Dual Output DC/DC Converters (TOPPOWER)
  • TPS2405A - 2W 6KVDC Isolated Dual Output DC/DC Converters (TOPPOWER)
  • TPS2409 - 2W 6KVDC Isolated Dual Output DC/DC Converters (TOPPOWER)
  • TPS2409A - 2W 6KVDC Isolated Dual Output DC/DC Converters (TOPPOWER)
  • TPS2412A - 2W 6KVDC Isolated Dual Output DC/DC Converters (TOPPOWER)
Other Datasheets by Texas Instruments
  • TPS2301 - DUAL HOT-SWAP POWER CONTROLLERS
  • TPS2306 - DUAL SEQUENCING HOT SWAP POWER MANAGER
  • TPS2310 - DUAL HOT-SWAP POWER CONTROLLERS
  • TPS2311 - DUAL HOT-SWAP POWER CONTROLLERS
  • TPS2320 - DUAL HOT SWAP POWER CONTROLLERS
  • TPS2321 - DUAL HOT SWAP POWER CONTROLLERS
  • TPS2330 - SINGLE HOT-SWAP POWER CONTROLLERS
  • TPS2331 - SINGLE HOT-SWAP POWER CONTROLLERS

Full PDF Text Transcription

Click to expand full text

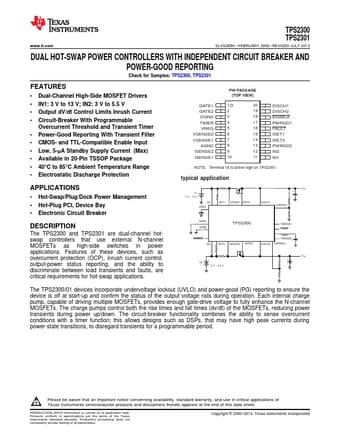

www.ti.com TPS2300 TPS2301 SLVS265H – FEBRUARY 2000 – REVISED JULY 2013 DUAL HOT-SWAP POWER CONTROLLERS WITH INDEPENDENT CIRCUIT BREAKER AND POWER-GOOD REPORTING Check for Samples: TPS2300, TPS2301 FEATURES 1 • Dual-Channel High-Side MOSFET Drivers • IN1: 3 V to 13 V; IN2: 3 V to 5.
