TPS22916BL, TPS22916B Ultra-Low Leakage Load Switch

TPS22916BL Description

TPS22916 SLVSDO5F * JULY 2017 * REVISED DECEMBER 2021 TPS22916xx 1-V *5.5-V, 2-A, 60-mΩ Ultra-Low Leakage Load Switch 1 Featur.
The TPS22916xx is a small, single channel load switch using a low leakage P-Channel MOSFET for minimum power loss.

TPS22916BL Features

* Input operating voltage range (VIN): 1 V
* 5.5 V
* Maximum continuous current (IMAX): 2 A
* ON-resistance (RON):
* 5 VIN = 60 mΩ (typ. ), 100 mΩ (85°C max. )
* 1.8 VIN = 100 mΩ (typ. ), 150 mΩ (85°C max. )
* 1 VIN = 200 mΩ (typ. ), 325 mΩ (85°C max.

TPS22916BL Applications

* Wearables
* Smartphones
* Tablets

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TPS22916BL, TPS22916B. Please refer to the document for exact specifications by model.

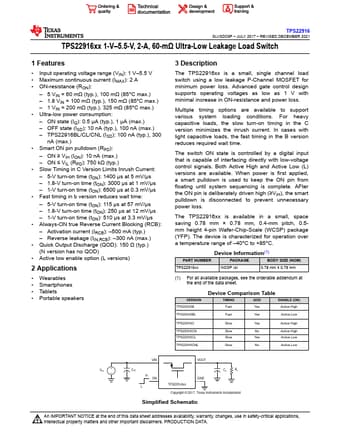

datasheet Preview Page 2 datasheet Preview Page 3
