TPA6203A1 - 1.25-W MONO FULLY DIFFERENTIAL AUDIO POWER AMPLIFIER

Description

The TPA6203A1 is a 1.25-W mono fully differential amplifier designed to drive a speaker with at least 8-Ω impedance while consuming less than 37 mm2 (ZQV package option) total printed-circuit board (PCB) area in most applications.

Features

  • 1.
  • 2 1.25 W Into 8 Ω From a 5-V Supply at THD = 1% (Typical).
  • Low Supply Current: 1.7 mA Typical.
  • Shutdown Control < 10 µA.
  • Only Five External Components.
  • Improved PSRR (90 dB) and Wide Supply Voltage (2.5 V to 5.5 V) for Direct Battery Operation.
  • Fully Differential Design Reduces RF Rectification.
  • Improved CMRR Eliminates Two Input Coupling Capacitors.
  • C(BYPASS) Is Optional Due to Fully Differential Design and High PSRR.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TPA620 Bi-Directional Current and Power Monitor 3PEAK
TPA62 Trisil STMicroelectronics
TPA62 SOLID STATE TELECOMMUNICATION PROTECTION ARRESTOR TIAN YI
TPA626 Bi-Directional Current and Power Monitor 3PEAK
TPA6270X Bi-Directional Current and Power Monitor 3PEAK

Other Datasheets by Texas Instruments

Part Number Description
TPA6204A1 1.7-W Mono Fully Differential Audio Power Amplifier
TPA6205A1 1.25-W Mono Fully Differential Audio Power Amplifier
TPA6211A1 3.1-W Mono Fully Differential Audio Power Amplifier
TPA6211A1-Q1 3.1-W Mono Fully Differential Audio Power Amplifier
TPA6010A4 STEREO 2.7-W AUDIO POWER AMPLIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

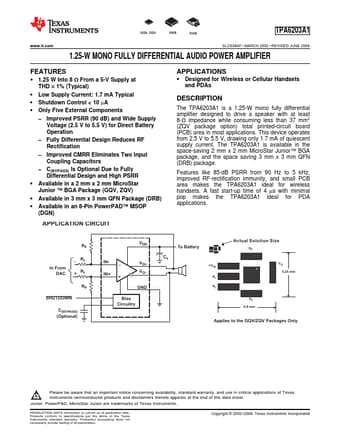

GQV, ZQV DRB DGN TPA6203A1 www.ti.com.......................................................................................................................................................... SLOS364F – MARCH 2002 – REVISED JUNE 2008 1.25-W MONO FULLY DIFFERENTIAL AUDIO POWER AMPLIFIER FEATURES 1 •2 1.25 W Into 8 Ω From a 5-V Supply at THD = 1% (Typical) • Low Supply Current: 1.7 mA Typical • Shutdown Control < 10 µA • Only Five External Components – Improved PSRR (90 dB) and Wide Supply Voltage (2.5 V to 5.
