TPA0212 - STEREO 2.6-W AUDIO POWER AMPLIFIER

Texas Instruments

The TPA0212 by Texas Instruments is a STEREO 2.6-W AUDIO POWER AMPLIFIER. Below is the official datasheet preview.

📥 Download Datasheet

TPA0212 STEREO 2.6-W AUDIO POWER AMPLIFIER by Texas Instruments - Datasheet Preview — Official preview page of the **TPA0212** STEREO 2.6-W AUDIO POWER AMPLIFIER datasheet (Texas Instruments).

Datasheet Details

Part number	TPA0212
Manufacturer	Texas Instruments
File Size	1.22 MB
Description	STEREO 2.6-W AUDIO POWER AMPLIFIER
Datasheet	TPA0212-etcTI.pdf

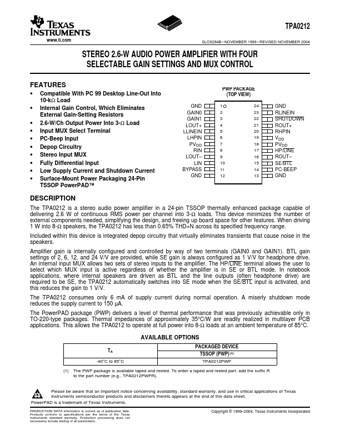

Additional preview pages of the TPA0212 datasheet.

TPA0212 Product details

Description

The TPA0212 is a stereo audio power amplifier in a 24-pin TSSOP thermally enhanced package capable of delivering 2.6 W of continuous RMS power per channel into 3-Ω loads.

Features

Compatible With PC 99 Desktop Line-Out Into 10-kΩ Load.
Internal Gain Control, Which Eliminates External Gain-Setting Resistors.
2.6-W/Ch Output Power Into 3-Ω Load.
Input MUX Select Terminal.
PC-Beep Input.
Depop Circuitry.
Stereo Input MUX.
Fully Differential Input.
Low Supply Current and Shutdown Current.
Surface-Mount Power Packaging 24-Pin TSSOP PowerPAD™ GND GAIN0 GAIN1 LOUT+.
