TP3067B, TP3064B Datasheet - Texas Instruments

TP3067B MONOLITHIC SERIAL INTERFACE COMBINED PCM CODEC AND FILTER

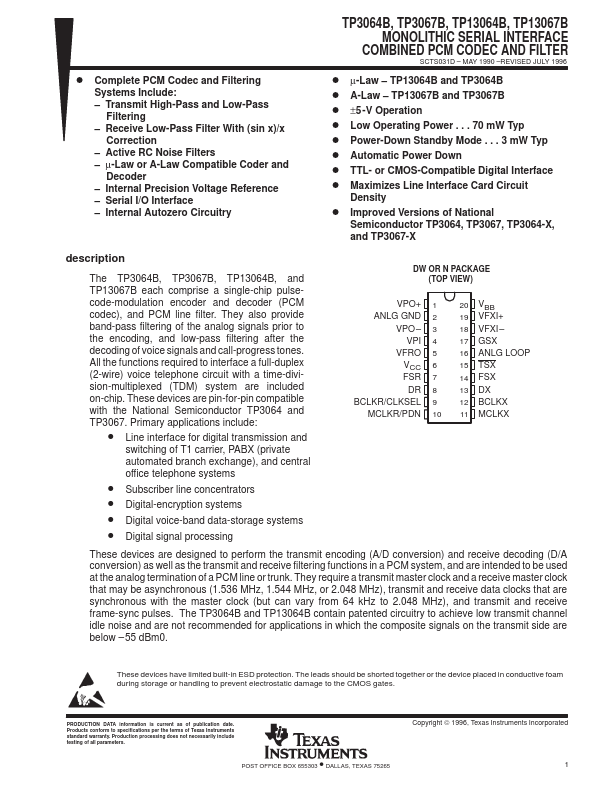

The TP3064B, TP3067B, TP13064B, and TP13067B each comprise a single-chip pulsecode-modulation encoder and decoder (PCM codec), and PCM line filter. They also provide band-pass filtering of the analog signals prior to the encoding, and low-pass filtering after the decoding of voice signals and call-p.

D Complete PCM Codec and Filtering Systems Include: Transmit High-Pass and Low-Pass Filtering Receive Low-Pass Filter With (sin x)/x Correction Active RC Noise Filters µ-Law or A-Law Compatible Coder and Decoder Internal Precision Voltage Reference Serial I/O Interface Internal Autozero Circuitry TP3064B, TP3067B, TP13064B, TP13067B MONOLITHIC SERIAL INTERFACE COMBINED PCM CODEC AND FILTER SCTS031D MAY 1990 .

TP3064B-etcTI.pdf

TP3067B Datasheet Preview — This datasheet PDF includes multiple part numbers: TP3067B, TP3064B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TP3067B, TP3064B

Manufacturer:

Texas Instruments ↗

File Size:

297.97 KB

Description:

Monolithic serial interface combined pcm codec and filter.

Note:

This datasheet PDF includes multiple part numbers: TP3067B, TP3064B.
Please refer to the document for exact specifications by model.
