TMUX8211 Description

TMUX8211, TMUX8212, TMUX8213 SCDS434B * OCTOBER 2021 * REVISED MARCH 2023 TMUX821x 100-V, Flat Ron, 1:1 (SPST), 4-Channel Switches wit.
The TMUX8211, TMUX8212, and TMUX8213 are modern high voltage capable analog switches with Latch-Up immunity.

TMUX8211 Features

* High supply voltage capable:
* Dual supply: ±10 V to ±50 V
* Single supply: 10 V to 100 V
* Asymmetric dual supply operation
* Consistent parametric across supply voltages
* Latch-up immune
* High continuous current: 200 mA
* Low cros

TMUX8211 Applications

* High voltage bidirectional switching
* Analog and digital signal switching
* Semiconductor test equipment
* LCD test equipment
* Battery test equipment
* Data acquisition systems (DAQ)
* Digital multi-meter (DMM)
* Factory automation

📥 Download Datasheet

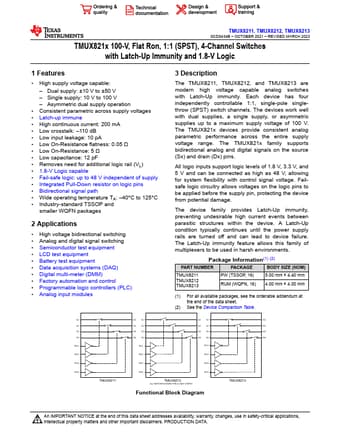

TMUX8211 Datasheet Preview — Preview of TMUX8211 PDF

Datasheet Details

Part number: TMUX8211
Manufacturer: Texas Instruments ↗
File Size: 2.03 MB
Datasheet: TMUX8211-etcTI.pdf
Description: 4-Channel Switches
