TMAG5170 - High-Precision 3D Linear Hall-Effect Sensor

Description

The TMAG5170 is a high-precision linear 3D Halleffect sensor designed for a wide range of industrial and personal electronics applications.

The high level of integration offers flexibility and accuracy in a variety of position sensing systems.

Features

  • High-precision linear 3D Hall-effect sensor to optimize position sensing speed and accuracy:.
  • Linear measurement total error: ±2.6% (maximum at 25°C).
  • Sensitivity temperature drift: ±2.8% (maximum).
  • 20-Ksps conversion rate for single axis.
  • 10-MHz serial peripheral interface (SPI) with cyclic redundancy check (CRC).
  • Built-in temperature sensor with < ±2°C error.
  • Independently selectable X, Y, and Z magnetic ranges:.
  • TMAG5170.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TMA0505D DC/DC Converter TRACO POWER
TMA0505S DC/DC Converter TRACO POWER
TMA0512D DC/DC Converter TRACO POWER
TMA0512S DC/DC Converter TRACO POWER
TMA0515D DC/DC Converter TRACO POWER

Other Datasheets by Texas Instruments

Part Number Description
TMAG5170-Q1 High-Precision 3D Linear Hall-Effect Sensor
TMAG5110 Dual-Channel High-Sensitivity Hall-Effect Latch
TMAG5110-Q1 Dual-Channel High-Sensitivity Hall-Effect Latch
TMAG5111 Dual-Channel High-Sensitivity Hall-Effect Latch
TMAG5111-Q1 Dual-Channel High-Sensitivity Hall-Effect Latch

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

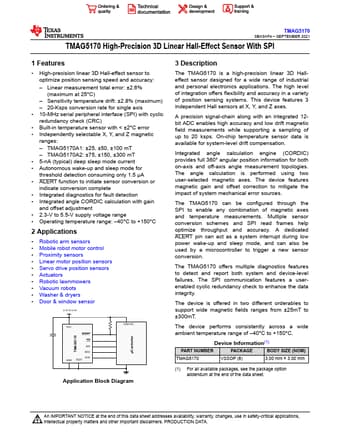

TMAG5170 SBASAF4 – SEPTEMBER 2021 TMAG5170 High-Precision 3D Linear Hall-Effect Sensor With SPI 1 Features • High-precision linear 3D Hall-effect sensor to optimize position sensing speed and accuracy: – Linear measurement total error: ±2.6% (maximum at 25°C) – Sensitivity temperature drift: ±2.8% (maximum) – 20-Ksps conversion rate for single axis • 10-MHz serial peripheral interface (SPI) with cyclic redundancy check (CRC) • Built-in temperature sensor with < ±2°C error • Independently selectable X, Y, and Z magnetic ranges: – TMAG5170A1: ±25, ±50, ±100 mT – TMAG5170A2: ±75, ±150, ±300 mT • 5-nA (typical) deep sleep mode current • Autonomous wake-up and sleep mode for threshold detection consuming only 1.
