TLV9021, TLV9020 - Precision Comparator

Texas Instruments

The TLV9021 by Texas Instruments is a Precision Comparator. Below is the official datasheet preview.

📥 Download Datasheet

TLV9021 Precision Comparator by Texas Instruments - Datasheet Preview — Official preview page of the TLV9021 Precision Comparator datasheet (Texas Instruments).

Datasheet Details

Part number	TLV9021, TLV9020
Manufacturer	Texas Instruments
File Size	5.56 MB
Description	Precision Comparator
Datasheet	TLV9020-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: TLV9021, TLV9020. Please refer to the document for exact specifications by model.

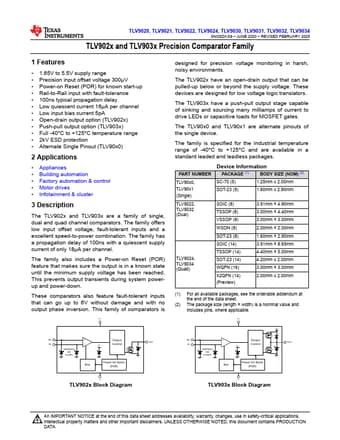

Additional preview pages of the TLV9021 datasheet.

TLV9021 Product details

Description

The TLV902x and TLV903x are a family of single, dual and quad channel comparators.

Features

1.65V to 5.5V supply range.
Precision input offset voltage 300μV.
Power-on Reset (POR) for known start-up.
Rail-to-Rail input with fault-tolerance.
100ns typical propagation delay.
Low quiescent current 16μA per channel.
Low input bias current 5pA.
Open-drain output option (TLV902x).
Push-pull output option (TLV903x).
Full -40°C to +125°C temperature range.
2kV ESD protection.
Alternate S.
