TLV320DAC3120 - Low-Power Mono Audio DAC

Name: TLV320DAC3120
SKU: TLV320DAC3120-1491573

Texas Instruments

The TLV320DAC3120 by Texas Instruments is a Low-Power Mono Audio DAC. Below is the official datasheet preview.

Datasheet Details

Part number	TLV320DAC3120
Manufacturer	Texas Instruments
File Size	2.26 MB
Description	Low-Power Mono Audio DAC
Datasheet	TLV320DAC3120-etcTI.pdf

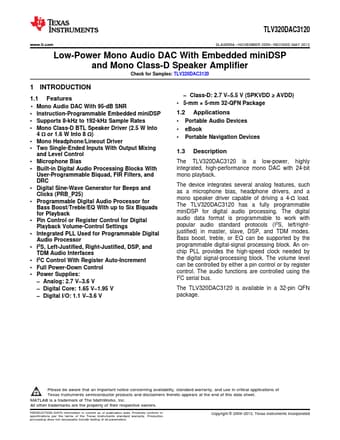

Additional preview pages of the TLV320DAC3120 datasheet.

The TLV320DAC3120 is a low-power, highly integrated, high-performance mono DAC with 24-bit mono playback.

123 Mono Audio DAC With 95-dB SNR.
Instruction-Programmable Embedded miniDSP.
Supports 8-kHz to 192-kHz Sample Rates.
Mono Class-D BTL Speaker Driver (2.5 W Into 4 Ω or 1.6 W Into 8 Ω).
Mono Headphone/Lineout Driver.
Two Single-Ended Inputs With Output Mixing and Level Control.
Microphone Bias.
Built-in Digital Audio Processing Blocks With User-Programmable Biquad, FIR Filters, and DRC.
Digital Sine-Wave Generator f.
