TLC2201A - Operational Amplifiers

Download the TLC2201A datasheet PDF (TLC2201 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for operational amplifiers.

Description

The TLC220x, TLC220xA, TLC220xB, and TLC220xY are precision, low-noise operational amplifiers using Texas Instruments Advanced LinCMOS process.

These devices combine the noise performance of the lowest-noise JFET amplifiers with the dc precision available previously only in bipolar amplifiers.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TLC2201-etcTI.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • TLC221A - (TLCxxxA) Sensitive Gate Triacs (ST Microelectronics)
  • TLC221B - (TLCxxxB) Triacs (ST Microelectronics)
  • TLC221D - (TLCxxxD) Sensitive Gate Triacs (ST Microelectronics)
  • TLC221S - (TLCxxxS) Sensitive Gate Triacs (ST Microelectronics)
  • TLC221T - (TLCxxxT) Sensitive Gate Triacs (ST Microelectronics)
  • TLC226A - SENSITIVE GATE TRIACS (STMicroelectronics)
  • TLC226D - SENSITIVE GATE TRIACS (STMicroelectronics)
  • TLC226S - SENSITIVE GATE TRIACS (STMicroelectronics)
  • TLC226T - SENSITIVE GATE TRIACS (STMicroelectronics)
  • TLC271 - CMOS PROGRAMMABLE LOW POWER OPERATIONAL AMPLIFIERS (Diodes)
Other Datasheets by Texas Instruments

Full PDF Text Transcription

Click to expand full text

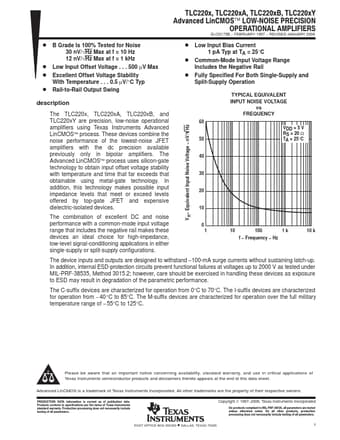

TLC220x, TLC220xA, TLC220xB, TLC220xY Advanced LinCMOS LOWĆNOISE PRECISION OPERATIONAL AMPLIFIERS SLOS175B − FEBRUARY 1997 − REVISED JANUARY 2008 VVnn− Equivalent Input Noise Voltage − nV/ HzHz D B Grade Is 100% Tested for Noise 30 nV/√Hz Max at f = 10 Hz 12 nV/√Hz Max at f = 1 kHz D Low Input Offset Voltage . . . 500 µV Max D Excellent Offset Voltage Stability With Temperature . . . 0.5 µV/°C Typ D Rail-to-Rail Output Swing description The TLC220x, TLC220xA, TLC220xB, and TLC220xY are precision, low-noise operational amplifiers using Texas Instruments Advanced LinCMOS process. These devices combine the noise performance of the lowest-noise JFET amplifiers with the dc precision available previously only in bipolar amplifiers.
