TL1453C - Dual PWM Controller

Product Overview

📥 Download Datasheet

Datasheet preview – TL1453C

Datasheet Details

Part number TL1453C
Manufacturer Texas Instruments
File Size 669.60 KB
Description Dual PWM Controller
Datasheet download datasheet TL1453C Datasheet
Additional preview pages of the TL1453C datasheet.

Product details

Description

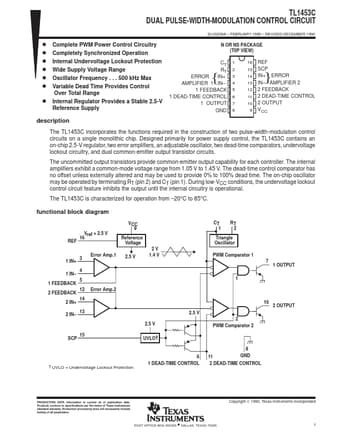

SLVS039A FEBRUARY 1990 REVISED DECEMBER 1990 N OR NS PACKAGE (T0P VIEW) CT { RT ERROR IN+ AMPLIFIER 1 IN 1 FEEDBACK 1 DEAD-TIME CONTROL 1 OUTPUT GND 1 2 3 4 5 6 7 8 16 REF 15 SCP }14 IN+ ERROR 13 IN AMPLIFIER 2 12 2 FEEDBACK 11 2 DEAD-TIME CONTROL 10 2 OUTPUT 9 VCC The TL1453C incorporates the functions required in the construction of two pulse-width-modulation control circuits on a single monolithic chip.Designed primarily for power supply control, t
