TL084A, TL081 - JFET-Input Operational Amplifiers

Texas Instruments

The TL084A by Texas Instruments is a JFET-Input Operational Amplifiers. Below is the official datasheet preview.

📥 Download Datasheet

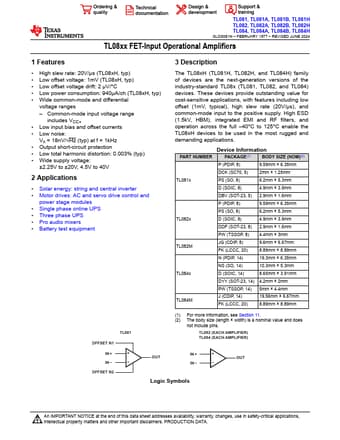

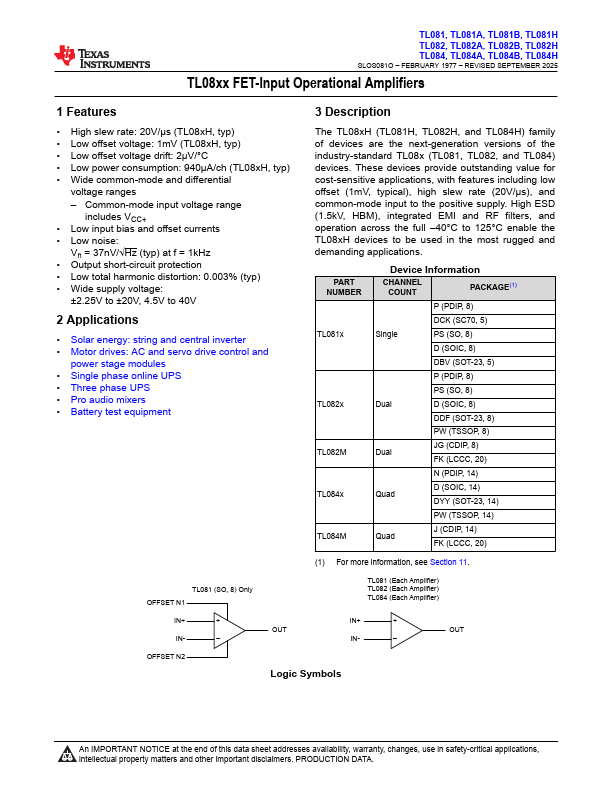

TL084A JFET-Input Operational Amplifiers by Texas Instruments - Datasheet Preview — Official preview page of the **TL084A** JFET-Input Operational Amplifiers datasheet (Texas Instruments).

Datasheet Details

Part number	TL084A, TL081
Manufacturer	Texas Instruments
File Size	5.22 MB
Description	JFET-Input Operational Amplifiers
Datasheet	TL081-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: TL084A, TL081. Please refer to the document for exact specifications by model.

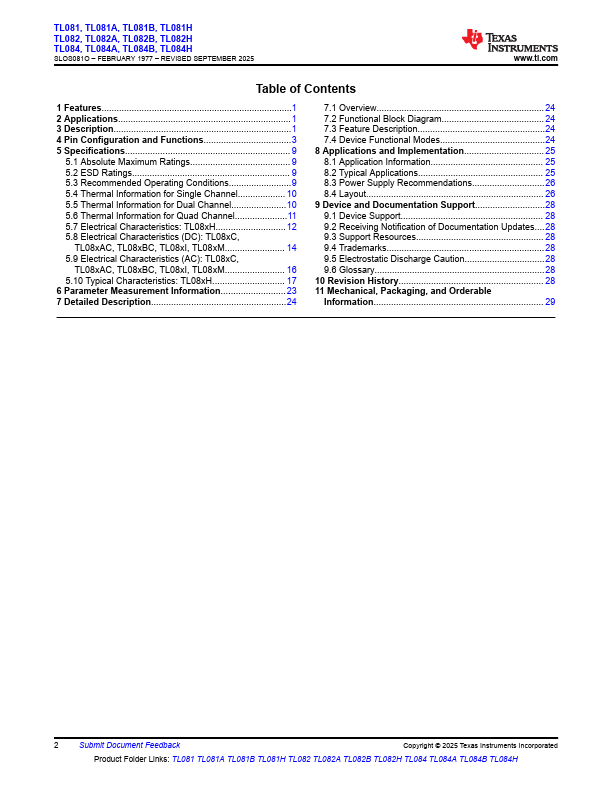

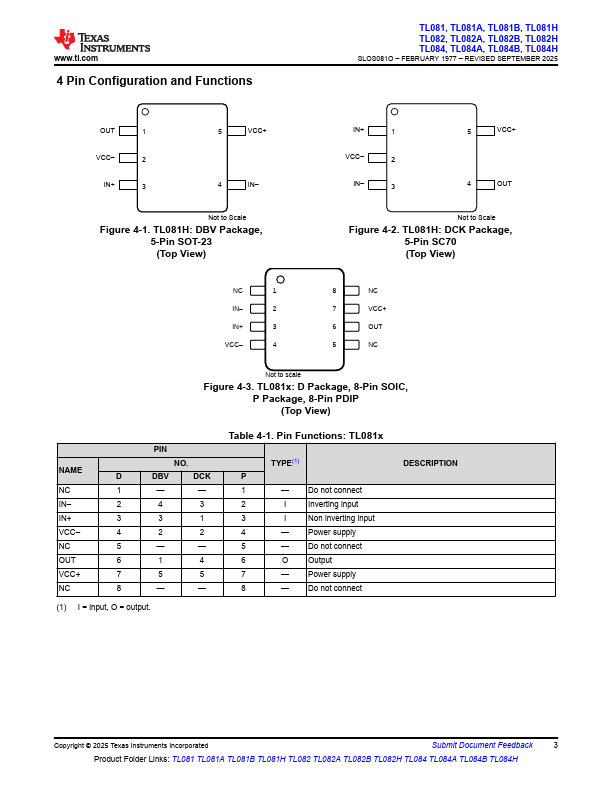

Additional preview pages of the TL084A datasheet.

TL084A Product details

Description

The TL08xH (TL081H, TL082H, and TL084H) family of devices are the next-generation versions of the industry-standard TL08x (TL081, TL082, and TL084) devices.

Features

High slew rate: 20V/μs (TL08xH, typ).
Low offset voltage: 1mV (TL08xH, typ).
Low offset voltage drift: 2μV/°C.
Low power consumption: 940μA/ch (TL08xH, typ).
Wide common-mode and differential voltage ranges.
Common-mode input voltage range includes VCC+.
Low input bias and offset currents.
Low noise: Vn = 37nV/√Hz (typ) at f = 1kHz.
Output short-circuit protection.
Low total harmonic distortion: 0.003% (ty.
