THS4021 - High-Speed Amplifiers

Description

The THS4021 and THS4022 (THS402x) are ultra-low voltage noise, high-speed voltage-feedback amplifiers that are an excellent choice for applications requiring low voltage noise, including communication and imaging.

Features

  • Ultra-low 1.2nV/√Hz voltage noise.
  • High speed:.
  • 2GHz gain-bandwidth product.
  • 470V/μs slew rate.
  • 30ns settling time (0.1%).
  • Stable at gains ≥10V/V.
  • Output drive, IO = 200mA (typical).
  • Very low distortion:.
  • THD =.
  • 68dBc (f = 1MHz, RL = 150Ω).
  • Wide range of power supplies:.
  • VCC = ±4.5V to ±16V.
  • Offset nulling pins on the THS4021 2.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
THS-56 Magnetic Direct Current Sensor MDCS NEC
THS-56F Magnetic Direct Current Sensor MDCS NEC
THS-63F Magnetic Direct Current Sensor MDCS NEC
THS-65 Magnetic Direct Current Sensor MDCS NEC
THS102A Hall Sensor Toshiba

Other Datasheets by Texas Instruments

Part Number Description
THS4022 High-Speed Amplifiers
THS4001 270-MHz HIGH-SPEED AMPLIFIER
THS4011 290-MHz LOW-DISTORTION HIGH-SPEED AMPLIFIERS
THS4012 290-MHz LOW-DISTORTION HIGH-SPEED AMPLIFIERS
THS4031 100MHz Low-Noise High-Speed Amplifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

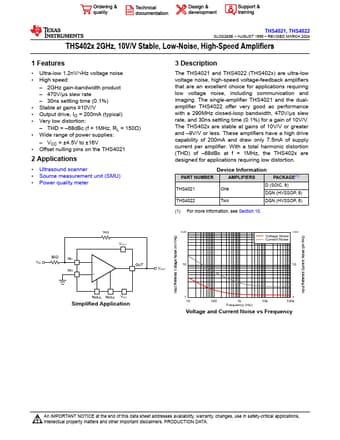

THS4021, THS4022 SLOS265E – AUGUST 1999 – REVISED MARCH 2024 THS402x 2GHz, 10V/V Stable, Low-Noise, High-Speed Amplifiers 1 Features • Ultra-low 1.2nV/√Hz voltage noise • High speed: – 2GHz gain-bandwidth product – 470V/μs slew rate – 30ns settling time (0.1%) • Stable at gains ≥10V/V • Output drive, IO = 200mA (typical) • Very low distortion: – THD = –68dBc (f = 1MHz, RL = 150Ω) • Wide range of power supplies: – VCC = ±4.5V to ±16V • Offset nulling pins on the THS4021 2 Applications • Ultrasound scanner • Source measurement unit (SMU) • Power quality meter 3 Description The THS4021 and THS4022 (THS402x) are ultra-low voltage noise, high-speed voltage-feedback amplifiers that are an excellent choice for applications requiring low voltage noise, including communication and imaging.
