SN74HC574N, SN74HC574 OCTAL EDGE-TRIGGERED D-TYPE FLIP-FLOP

SN74HC574N Description

SN54HC574, SN74HC574 SCLS148H * DECEMBER 1982 * REVISED MAY 2022 SNx4HC574 Octal Edge-Triggered D-Type Flip-Flops With 3-State Outputs.
These octal edge-triggered D-type flip-flops feature 3-state outputs designed specifically for bus driving.

SN74HC574N Features

* Wide Operating Voltage Range of 2 V to 6 V
* High-Current 3-State Noninverting Outputs Drive Bus Lines Directly or Up to 15 LSTTL Loads
* Low Power Consumption, 80-µA Max ICC
* Typical tpd = 22 ns
* ±6-mA Output Drive at 5 V
* Low Input Current of 1-

SN74HC574N Applications

* intellectual property matters and other important disclaimers. PRODUCTION DATA. SN54HC574, SN74HC574 SCLS148H
* DECEMBER 1982

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SN74HC574N, SN74HC574. Please refer to the document for exact specifications by model.

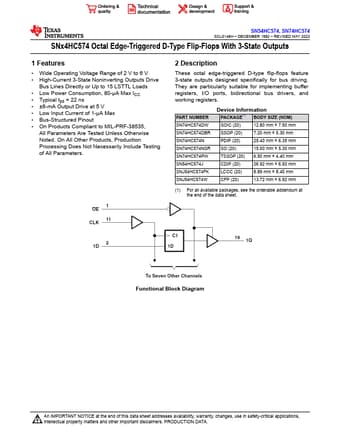

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SN74HC574N, SN74HC574
Manufacturer
Texas Instruments ↗
File Size
1.98 MB
Datasheet
SN74HC574-etcTI.pdf
Description
OCTAL EDGE-TRIGGERED D-TYPE FLIP-FLOP
Note
This datasheet PDF includes multiple part numbers: SN74HC574N, SN74HC574.
Please refer to the document for exact specifications by model.
