SN74HC4040N, SN74HC4040 12-Bit Asynchronous Binary Counters

SN74HC4040N Description

SN54HC4040, SN74HC4040 SCLS160E * DECEMBER 1982 * REVISED MARCH 2022 SNx4HC4040 12-Bit Asynchronous Binary Counters 1 .
The ’HC4040 devices are 12-stage asynchronous binary counters, with the outputs of all stages available externally.

SN74HC4040N Features

* Wide operating voltage range of 2 V to 6 V
* Outputs can drive up to 10 LSTTL loads
* Low power consumption, 80-µA max ICC
* Typical tpd = 12 ns
* ±4-mA output drive at 5 V

SN74HC4040N Applications

* include time-delay circuits, counter controls, and frequency-dividing circuits. PART NUMBER SN74HC4040D SN74HC4040N SN74HC4040NS SN74HC4040PW SN54HC4040J SNJ54HC4040FK SNJ54HC4040W Device Information PACKAGE(1) BODY SIZE (NOM) SOIC (16) 9.90 mm × 3.90 mm PDIP (16) 19.31 mm × 6.35 mm SO (16)

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SN74HC4040N, SN74HC4040. Please refer to the document for exact specifications by model.

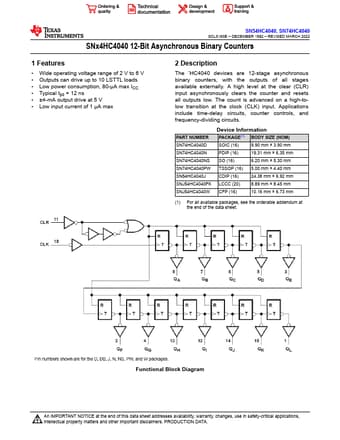

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SN74HC4040N, SN74HC4040
Manufacturer
Texas Instruments ↗
File Size
1.85 MB
Datasheet
SN74HC4040-etcTI.pdf
Description
12-Bit Asynchronous Binary Counters
Note
This datasheet PDF includes multiple part numbers: SN74HC4040N, SN74HC4040.
Please refer to the document for exact specifications by model.
