SN74HC245 Octal Bus Transceivers

SN74HC245 Description

SN54HC245, SN74HC245 SCLS131F * DECEMBER 1982 * REVISED AUGUST 2022 SNx4HC245 Octal Bus Transceivers With 3-State Outputs 1 .
These octal bus transceivers are designed for asynchronous two-way communication between data buses.

SN74HC245 Features

* Wide Operating Voltage Range of 2 V to 6 V
* High-Current 3-State Outputs Drive Bus Lines Directly or Up to 15 LSTTL Loads
* Low Power Consumption, 80-μA Max ICC
* Typical tpd = 12 ns
* ±6-mA Output Drive at 5 V
* Low Input Current of 1 μA Max

SN74HC245 Applications

* Servers
* PCs and Notebooks
* Network Switches
* Wearable Health and Fitness Devices
* Telecom Infrastructures

📥 Download Datasheet

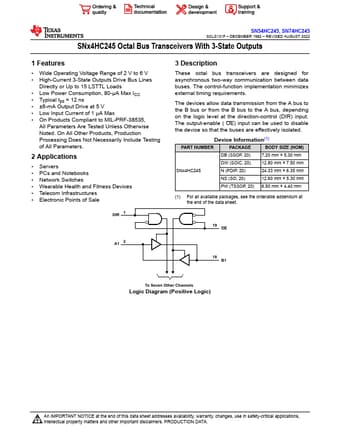

Preview of SN74HC245 PDF
