SN74HC08 - Quadruple 2-Input Positive-AND Gates

The SN74HC08 by Texas Instruments is a Quadruple 2-Input Positive-AND Gates. Below is the official datasheet preview.

📥 Download Datasheet

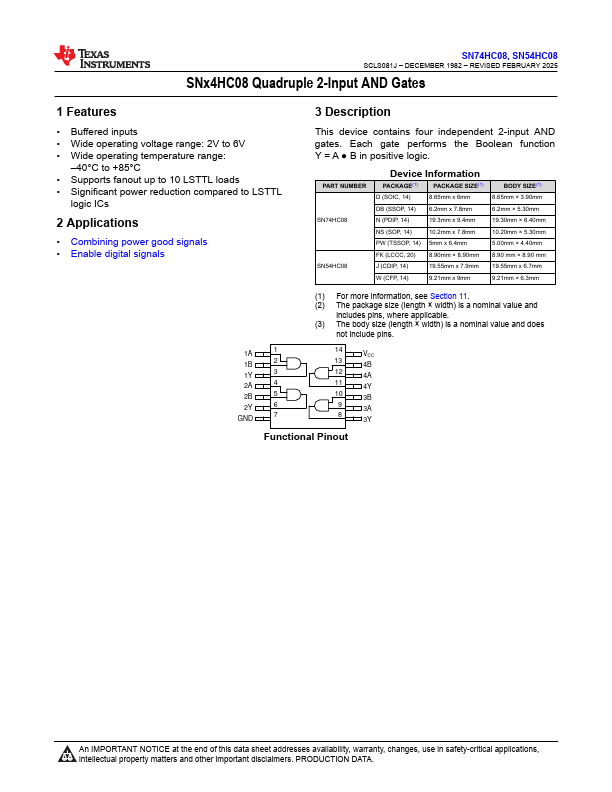

Official preview page of the SN74HC08 Quadruple 2-Input Positive-AND Gates datasheet (Texas Instruments).

Datasheet Details

Part number SN74HC08
Manufacturer Texas Instruments
File Size 1.87 MB
Description Quadruple 2-Input Positive-AND Gates
Datasheet download datasheet SN74HC08-etcTI.pdf

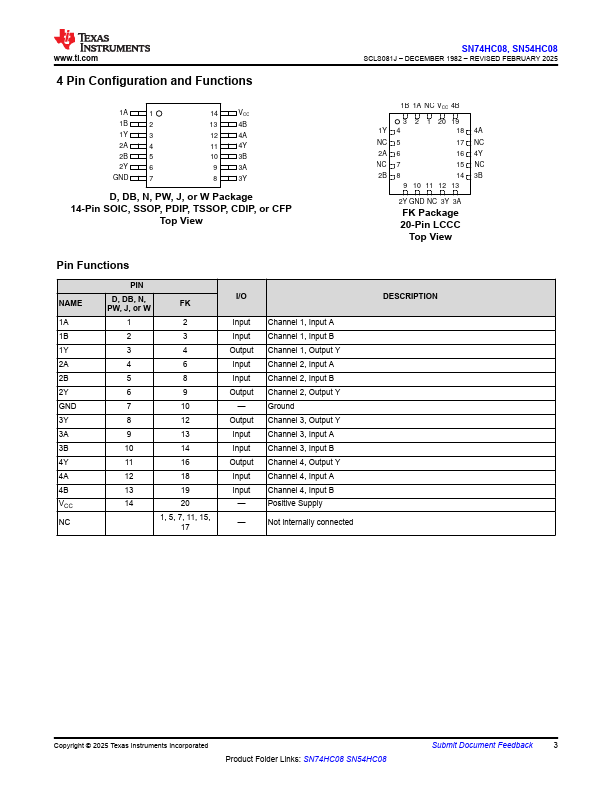

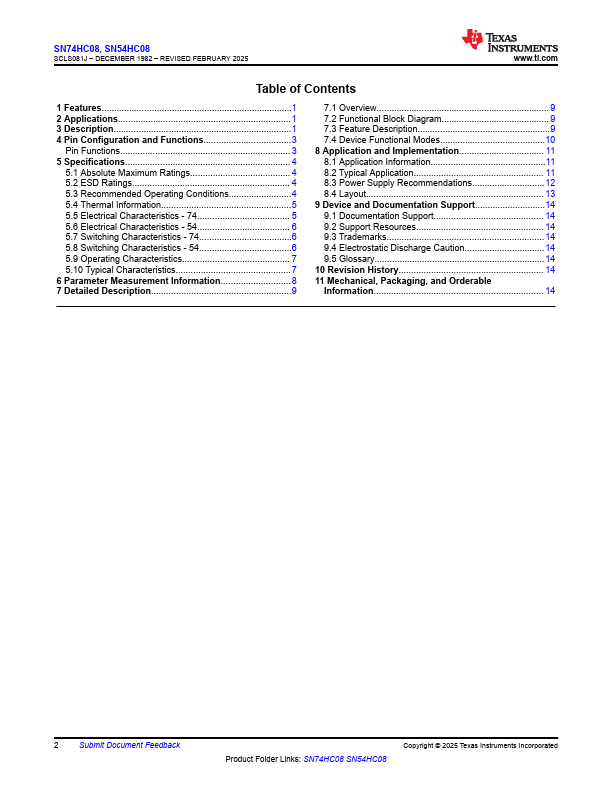

Additional preview pages of the SN74HC08 datasheet.

SN74HC08 Product details

Description

Buffered inputs Wide operating voltage range: 2V to 6V Wide operating temperature range: 40°C to +85°C Supports fanout up to 10 LSTTL loads Significant power reduction compared to LSTTL logic ICs 2 Applications Combining power good signals Enable digital signals This device contains four independent 2-input AND gates.Each gate performs the Boolean function Y = A B in positive logic.

Features
