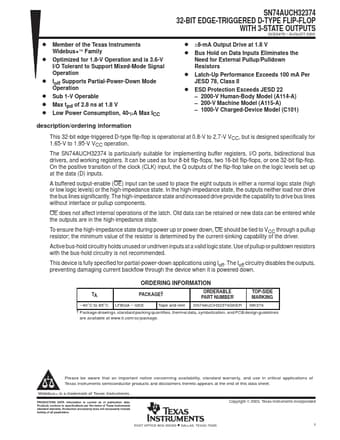

SN74AUCH32374, 32-BIT EDGE-TRIGGERED D-TYPE FLIP-FLOP

ordering information This 32-bit edge-triggered D-type flip-flop is operational at 0.8-V to 2.7-V VCC, but is designed specifically for 1.65-V to 1.95-V VCC operation.

The SN74AUCH32374 is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working reg

D Member of the Texas Instruments Widebus+ Family D Optimized for 1.8-V Operation and is 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation D Ioff Supports Partial-Power-Down Mode Operation D Sub 1-V Operable D Max tpd of 2.8 ns at 1.8 V D Low Power Consumption, 40-µA Max ICC SN74AUCH32374 32-BIT EDGE-TRIGGERED D-TYPE FLIP-FLOP WITH 3-STATE OUTPUTS SCES476 AUGUST 2003 D ±8-mA Output Drive at 1.8 V D Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resis
