SN74ALVCH162373 - 16-BIT TRANSPARENT D-TYPE LATCH

The SN74ALVCH162373 by Texas Instruments is a 16-BIT TRANSPARENT D-TYPE LATCH. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the SN74ALVCH162373 16-BIT TRANSPARENT D-TYPE LATCH datasheet (Texas Instruments).

Datasheet Details

Part number SN74ALVCH162373
Manufacturer Texas Instruments
File Size 489.46 KB
Description 16-BIT TRANSPARENT D-TYPE LATCH
Datasheet download datasheet SN74ALVCH162373-etcTI.pdf

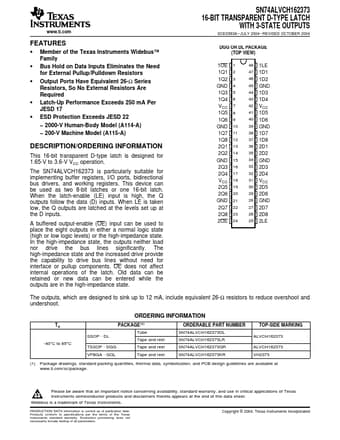

Additional preview pages of the SN74ALVCH162373 datasheet.

SN74ALVCH162373 Product details

Description

ORDERING INFORMATION This 16-bit transparent D-type latch is designed for 1.65-V to 3.6-V VCC operation.The SN74ALVCH162373 is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.This device can be used as two 8-bit latches or one 16-bit latch.When the latch-enable (LE) input is high, the Q outputs follow the data (D) inputs.When LE is taken low, the Q outputs are latched at the levels set up at the D inputs.A buffered output-
