SN74AC574 Octal D-Type Edge-Triggered Flip-Flops

SN74AC574 Description

SN54AC574, SN74AC574 SCAS541G * OCTOBER 1995 * REVISED MARCH 2024 SNx4AC574 Octal D-Type Edge-Triggered Flip-Flops with 3-State Output.
These 8-bit flip-flops feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads.

SN74AC574 Features

* Operation of 2V to 6V VCC
* Inputs accept voltages to 6V
* Max tpd of 8.5ns at 5V

SN74AC574 Applications

* intellectual property matters and other important disclaimers. PRODUCTION DATA. SN54AC574, SN74AC574 SCAS541G
* OCTOBER 1995

📥 Download Datasheet

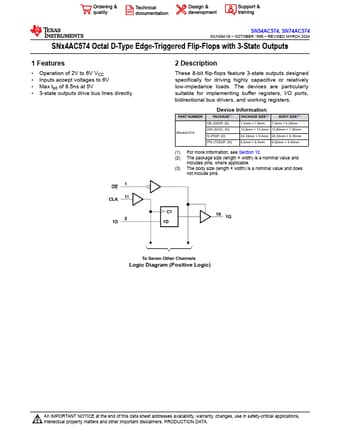

Preview of SN74AC574 PDF
