SN65HVS880 - EIGHT-CHANNEL DIGITAL-INPUT SERIALIZER

Texas Instruments

The SN65HVS880 by Texas Instruments is a EIGHT-CHANNEL DIGITAL-INPUT SERIALIZER. Below is the official datasheet preview.

📥 Download Datasheet

SN65HVS880 EIGHT-CHANNEL DIGITAL-INPUT SERIALIZER by Texas Instruments - Datasheet Preview — Official preview page of the **SN65HVS880** EIGHT-CHANNEL DIGITAL-INPUT SERIALIZER datasheet (Texas Instruments).

Datasheet Details

Part number	SN65HVS880
Manufacturer	Texas Instruments
File Size	922.18 KB
Description	EIGHT-CHANNEL DIGITAL-INPUT SERIALIZER
Datasheet	SN65HVS880-etcTI.pdf

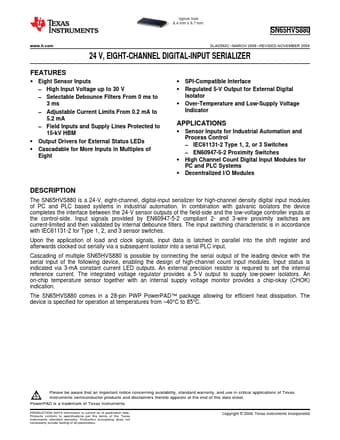

Additional preview pages of the SN65HVS880 datasheet.

SN65HVS880 Product details

Description

The SN65HVS880 is a 24-V, eight-channel, digital-input serializer for high-channel density digital input modules of PC and PLC based systems in industrial automation.

Features

1.
2 Eight Sensor Inputs.
High Input Voltage up to 30 V.
Selectable Debounce Filters From 0 ms to 3 ms.
Adjustable Current Limits From 0.2 mA to 5.2 mA.
Field Inputs and Supply Lines Protected to 15-kV HBM.
Output Drivers for External Status LEDs.
Cascadable for More Inputs in Multiples of Eight.
SPI-Compatible Interface.
Regulated 5-V Output for External Digital Isolator.
Over-Temperature and Low-Supply Vo.
