SN65HVD3088E, SN65HVD3082E Low-Power RS-485 Transceivers

SN65HVD3088E Description

SN65HVD3082E, SN75HVD3082E, SN65HVD3085E, SN65HVD3088E SLLS562O * AUGUST 2009 * REVISED JULY 2023 SNx5HVD308xE Low-Power RS-485 Transc.
The SNx5HVD308xE are half-duplex transceivers designed for RS-485 data bus networks.

SN65HVD3088E Features

* Meets or exceeds the requirements of the TIA/ EIA-485A standard
* Low quiescent power
* 0.3-mA Active mode
* 1-nA Shutdown mode
* 1/8 Unit load up to 256 nodes on a bus
* Bus-pin ESD protection up to 15 kV
* Industry-standard SN75176 footprin

SN65HVD3088E Applications

* Energy meter networks
* Motor control
* Power inverters
* Industrial automation
* Building automation networks
* Battery-powered applications

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SN65HVD3088E, SN65HVD3082E. Please refer to the document for exact specifications by model.

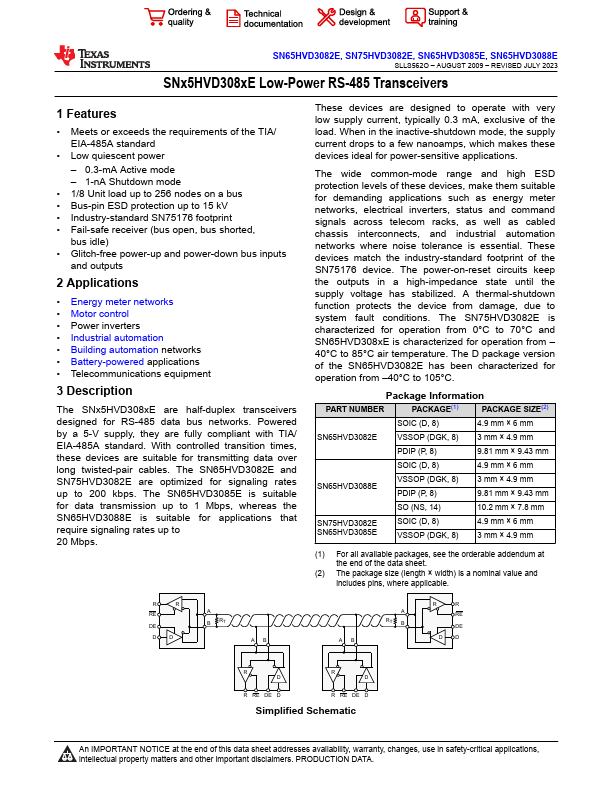

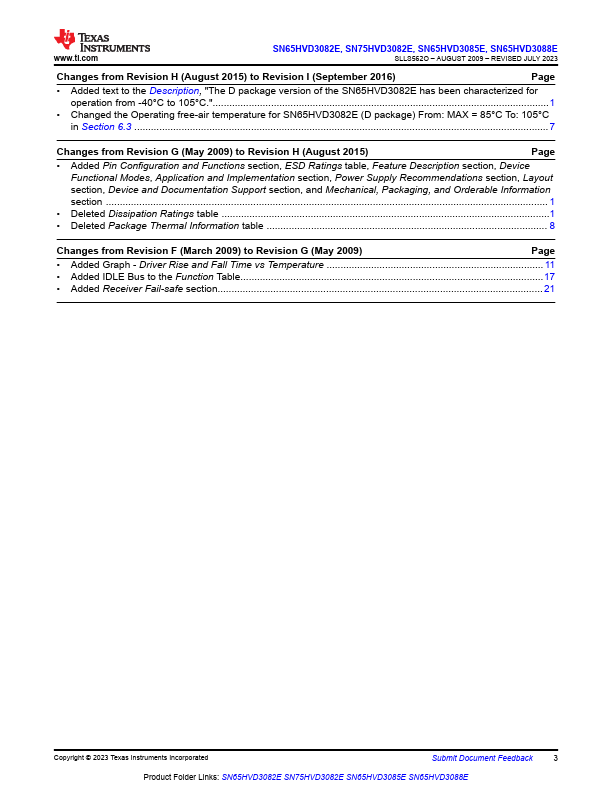

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SN65HVD3088E, SN65HVD3082E
Manufacturer
Texas Instruments ↗
File Size
1.37 MB
Datasheet
SN65HVD3082E-etcTI.pdf
Description
Low-Power RS-485 Transceivers
Note
This datasheet PDF includes multiple part numbers: SN65HVD3088E, SN65HVD3082E.
Please refer to the document for exact specifications by model.
