SN65HVD257, SN65HVD255 Turbo CAN Transceivers

SN65HVD257 Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community SN65HVD255, SN65HVD256, SN65HVD257 SLLSEA2D * DECEMB.
This CAN transceiver meets the ISO1189-2 High Speed CAN (Controller Area Network) Physical Layer standard.

SN65HVD257 Features

* for Functional Safety 1 Features
* 1 Meets the Requirements of ISO11898-2
* Turbo CAN:
* Short and Symmetrical Propagation Delay Times and Fast Loop Times for Enhanced Timing Margin
* Higher Data Rates in CAN Networks
* I/O Voltage Range Supports 3.3-V and 5-V

SN65HVD257 Applications

* 1-Mbps Operation in Highly Loaded CAN Networks Down to 10-kbps Networks Using TXD DTO
* Industrial Automation, Control, Sensors, and Drive Systems
* Building, Security, and Climate Control Automation
* Telecom Base Station Status and Control
* SN65HVD257: Fu

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SN65HVD257, SN65HVD255. Please refer to the document for exact specifications by model.

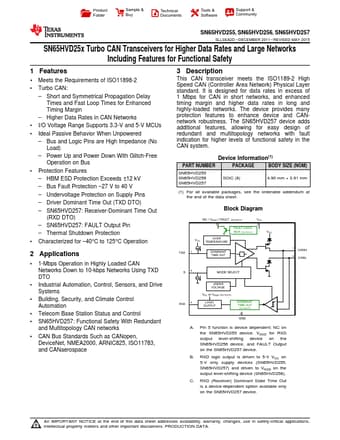

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SN65HVD257, SN65HVD255
Manufacturer
Texas Instruments ↗
File Size
0.96 MB
Datasheet
SN65HVD255-etcTI.pdf
Description
Turbo CAN Transceivers
Note
This datasheet PDF includes multiple part numbers: SN65HVD257, SN65HVD255.
Please refer to the document for exact specifications by model.
