SN65HVD11, SN65HVD10 - 3.3-V RS-485 Transceivers

Texas Instruments

The SN65HVD11 by Texas Instruments is a 3.3-V RS-485 Transceivers. Below is the official datasheet preview.

📥 Download Datasheet

SN65HVD11 3.3-V RS-485 Transceivers by Texas Instruments - Datasheet Preview — Official preview page of the **SN65HVD11** 3.3-V RS-485 Transceivers datasheet (Texas Instruments).

Datasheet Details

Part number	SN65HVD11, SN65HVD10
Manufacturer	Texas Instruments
File Size	1.38 MB
Description	3.3-V RS-485 Transceivers
Datasheet	SN65HVD10-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: SN65HVD11, SN65HVD10. Please refer to the document for exact specifications by model.

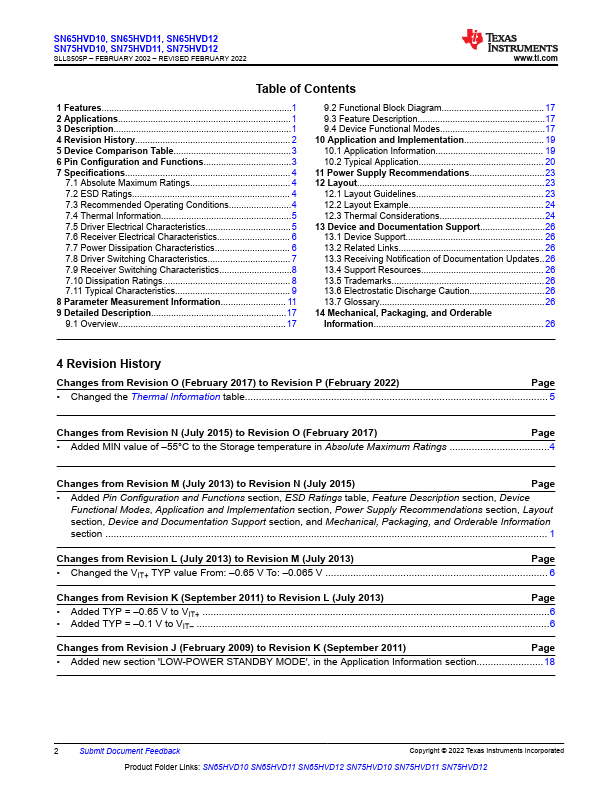

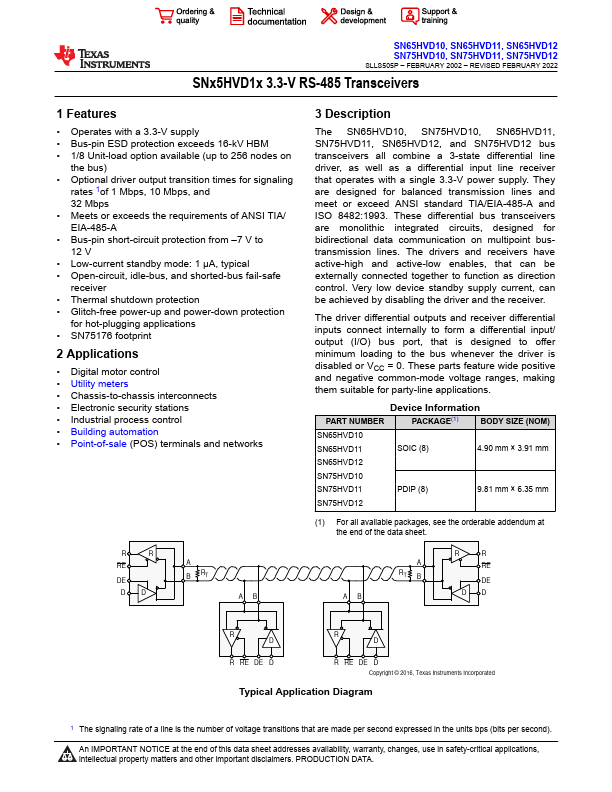

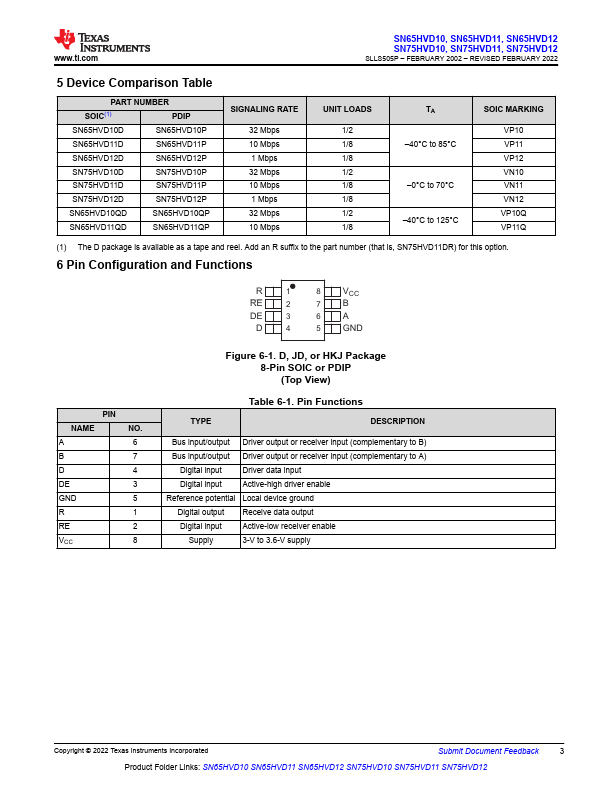

Additional preview pages of the SN65HVD11 datasheet.

SN65HVD11 Product details

Description

The SN65HVD10, SN75HVD10, SN65HVD11, SN75HVD11, SN65HVD12, and SN75HVD12 bus transceivers all combine a 3-state differential line driver, as well as a differential input line receiver that operates with a single 3.3-V power supply.

Features

Operates with a 3.3-V supply.
Bus-pin ESD protection exceeds 16-kV HBM.
1/8 Unit-load option available (up to 256 nodes on the bus).
Optional driver output transition times for signaling rates 1of 1 Mbps, 10 Mbps, and 32 Mbps.
Meets or exceeds the requirements of ANSI TIA/ EIA-485-A.
Bus-pin short-circuit protection from.
7 V to 12 V.
Low-current standby mode: 1 µA, typical.
Open-circuit, idle-bus, and shorted-bus f.
