SN54AHC244 - Octal Buffers/Drivers

Texas Instruments

The SN54AHC244 by Texas Instruments is a Octal Buffers/Drivers. Below is the official datasheet preview.

📥 Download Datasheet

SN54AHC244 Octal Buffers/Drivers by Texas Instruments - Datasheet Preview — Official preview page of the **SN54AHC244** Octal Buffers/Drivers datasheet (Texas Instruments).

Datasheet Details

Part number	SN54AHC244
Manufacturer	Texas Instruments
File Size	1.97 MB
Description	Octal Buffers/Drivers
Datasheet	SN54AHC244-etcTI.pdf

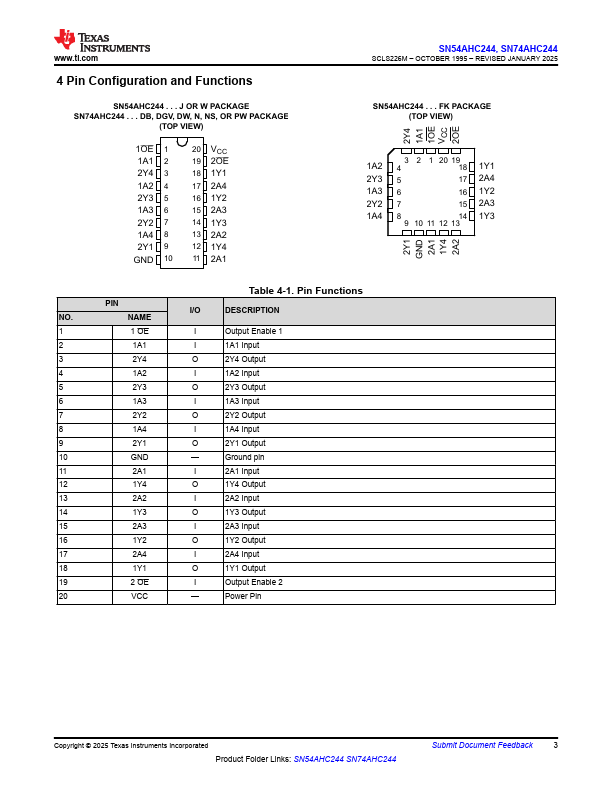

Additional preview pages of the SN54AHC244 datasheet.

SN54AHC244 Product details

Description

These octal buffers and drivers are designed specifically to improve the performance and density of 3-state memory-address drivers, clock drivers, and bus-oriented receivers and transmitters.

Features

VCC operating range of 2V to 5.5V.
Latch-up performance exceeds 250mA per JESD 17.
On products compliant to MIL-PRF-38535, All parameters are tested unless otherwise noted. On all other products, production processing does not necessarily include testing of all parameters. 2.
