SCAN921226H, SCAN921025H High Temperature 20-80 MHz 10-Bit Bus LVDS SerDes

SCAN921226H Description

SCAN921025H, SCAN921226H www.ti.com SNLS185C * OCTOBER 2004 * REVISED MAY 2013 SCAN921025H and SCAN921226H High Temperature 20-80 M.
The SCAN921025H transforms a 10-bit wide parallel LVCMOS/LVTTL data bus into a single high speed Bus LVDS serial data stream with embedded clock.

SCAN921226H Features

* 1
* 2 High Temperature Operation to 125°C
* IEEE 1149.1 (JTAG) Compliant and At-Speed BIST Test Mode
* Clock Recovery from PLL Lock to Random Data Patterns
* Ensured Transition Every Data Transfer Cycle
* Chipset (Tx + Rx) Power Consumption < 600 mW (Typ) @ 80

SCAN921226H Applications

* Automotive
* Industrial

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SCAN921226H, SCAN921025H. Please refer to the document for exact specifications by model.

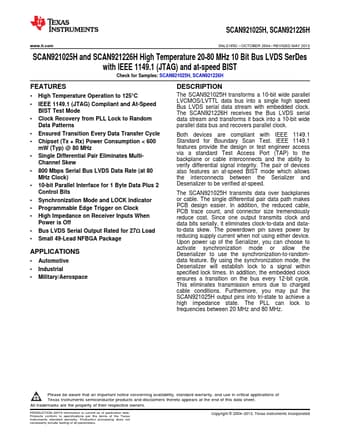

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SCAN921226H, SCAN921025H
Manufacturer
Texas Instruments ↗
File Size
1.07 MB
Datasheet
SCAN921025H-etcTI.pdf
Description
High Temperature 20-80 MHz 10-Bit Bus LVDS SerDes
Note
This datasheet PDF includes multiple part numbers: SCAN921226H, SCAN921025H.
Please refer to the document for exact specifications by model.
