SCAN15MB200 - Dual 1.5 Gbps 2:1/1:2 LVDS Mux/Buffer

Description

The SCAN15MB200 is a dual-port 2 to 1 multiplexer and 1 to 2 repeater/buffer.

High-speed data paths and flow-through pinout minimize internal device jitter and simplify board layout, while pre-emphasis overcomes ISI jitter effects from lossy backplanes and cables.

Features

  • 1.
  • 2 1.5 Gbps Data Rate Per Channel.
  • Configurable Off/On Pre-emphasis Drives Lossy Backplanes and Cables.
  • LVDS/BLVDS/CML/LVPECL Compatible Inputs, LVDS Compatible Outputs.
  • Low Output Skew and Jitter.
  • On-chip 100Ω Input and Output Termination.
  • IEEE 1149.1 and 1149.6 Compliant.
  • 15 kV ESD Protection on LVDS Inputs/Outputs.
  • Hot Plug Protection.
  • Single 3.3V Supply.
  • Industrial -40 to +85°C Temperature Range.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SCAN12100 CPRI SerDes National Semiconductor
SCAN16512 Low Voltage Universal 16-bit IEEE 1149.1 Bus Transceiver National Semiconductor
SCAN16602 Low Voltage Universal 16-bit IEEE 1149.1 Bus Transceiver National Semiconductor
SCAN182245A Non-Inverting Transceiver Fairchild Semiconductor
SCAN182245A Non-Inverting Transceiver National Semiconductor

Other Datasheets by Texas Instruments

Part Number Description
SCAN90CP02 1.5 Gbps 2x2 LVDS Crosspoint Switch
SCAN921023 20-66 MHz 10-Bit Bus LVDS Serializer and Deserializer
SCAN921025 30-80 MHz 10-Bit Bus LVDS Serializer and Deserializer
SCAN921025H High Temperature 20-80 MHz 10-Bit Bus LVDS SerDes
SCAN921224 20-66 MHz 10-Bit Bus LVDS Serializer and Deserializer

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

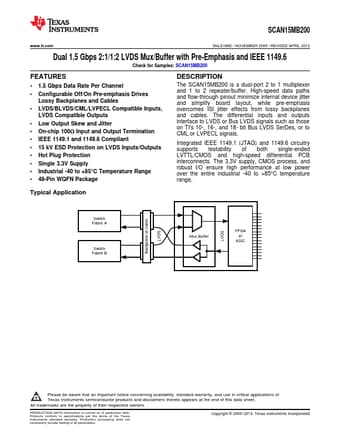

SCAN15MB200 www.ti.com SNLS188E – NOVEMBER 2005 – REVISED APRIL 2013 Dual 1.5 Gbps 2:1/1:2 LVDS Mux/Buffer with Pre-Emphasis and IEEE 1149.6 Check for Samples: SCAN15MB200 FEATURES 1 •2 1.5 Gbps Data Rate Per Channel • Configurable Off/On Pre-emphasis Drives Lossy Backplanes and Cables • LVDS/BLVDS/CML/LVPECL Compatible Inputs, LVDS Compatible Outputs • Low Output Skew and Jitter • On-chip 100Ω Input and Output Termination • IEEE 1149.1 and 1149.6 Compliant • 15 kV ESD Protection on LVDS Inputs/Outputs • Hot Plug Protection • Single 3.3V Supply • Industrial -40 to +85°C Temperature Range • 48-Pin WQFN Package DESCRIPTION The SCAN15MB200 is a dual-port 2 to 1 multiplexer and 1 to 2 repeater/buffer.
